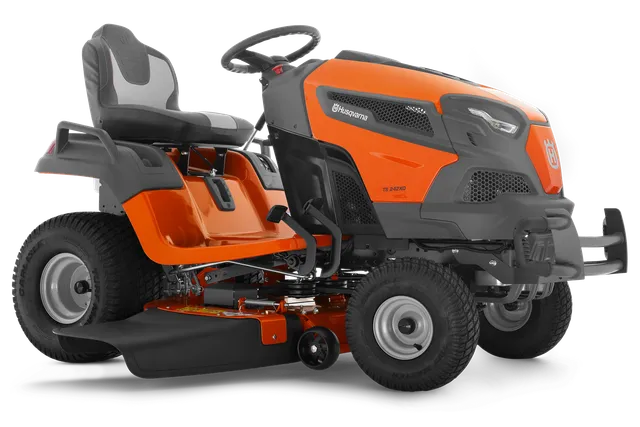

TS 242XD TRACTOR North America SKU: 960 43 03‑38 | |
---|---|
Cutting deck | TS 242XD TRACTOR North America SKU: 960 43 03‑38 |
Cutting width | 42 in |
Cutting height, max (approximate) | 4 in |
Cutting height, min (approximate) | 1.5 in |
Nose roller | Yes |
Anti-scalp wheels | 2 |
Drive system | |
Drive method | Dual pedal-operation |
Speed forward max | 5.2 mph |
Speed reverse max | 2.2 mph |
Engine | |
Cylinder displacement | 44.3 cu.inch |
Motor/engine manufacturer | Kawasaki |
Engine name | FR Series |
Engine Power (As rated by the engine manufacturer)1 | 21.5 hp |
Cylinders | 2 |
Generator | 15 A |
Power/fuel type | Petrol |
Oil filter | Yes |
Fuel tank volume (with reserve) | 4 gal (US) |
Product data | |
Greasable mandrels | Yes |
Equipment | |
Seat material | Vinyl |
Front-End Protection | Brush Guard Style Bumper |
Hour meter type | Digital with pre-programmed service intervals |
Seat back height | High 15" |
Steering wheel type | Deluxe Overmolded |
Collector | Available as accessory |
Transmission | |
Transmission type | Hydrostatic with Automatic Differential Lock |
Transmission manufacturer | Tuff Torq |
Emission | |
Exhaust emissions (CO₂ EU V)2 | 792 g/kWh |
Reviews
Services
Owner support
- 1Engine Power (As rated by the engine manufacturer): Gross power rating as per SAE J1995, at specified RPM
- 2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
