Parts, manuals and support for V548
All the support you need for V548. Manuals, spare parts, guides, how-to’s, and more.
Choose your SKU
For more product support please choose your SKU below.
Support content
Manuals & Documents(3)
Manuals & Documents
(3)
Showing the latest version of manual and documents for V548. For earlier versions, see link below to search all manuals & documents..
Operator's Manual
Published: 1/10/2023
4.17 MB,
EN, ES
Illustrated Part List
Published: 2/14/2022
360 kB,
EN
Accessories(3)
Accessories
(3)
All accessories for V548.
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications

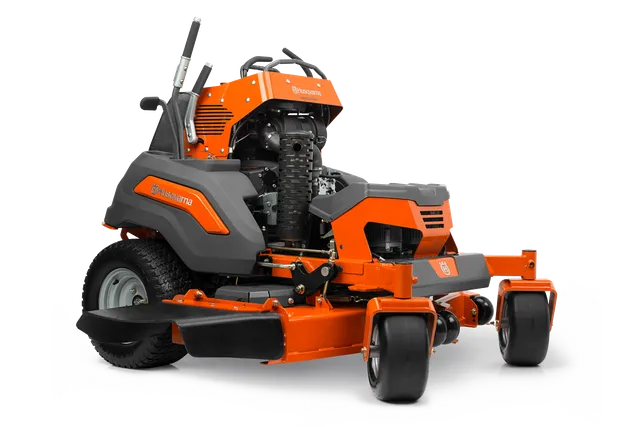

V548 ZERO TURNArt no: 967 67 25‑01 | |
|---|---|
| Cutting System | V548 ZERO TURN Art no: 967 67 25‑01 |
| Cutting width | 48 in |
| Cutting deck type | 7-gauge fabricated |
| Cutting methods | Collect/Mulch/Side discharge |
| Cutting deck material | Steel |
| Deck thickness | 7 gauge |
| Cutting height steps | 14 |
| Nose roller | No |
| Deck lifting system | Manual, hand operated |
| Powder-coated cutting deck | Yes |
| Spindle/mandrel type | Cast iron |
| Greasable mandrels | Yes |
| Deck Wash Port | No |
| Engine | |
| Motor/engine manufacturer | Kawasaki |
| Power output | 24.5 hp |
| Engine name | FX Series |
| Cylinder displacement | 52 cu.inch |
| Cylinders | 2 |
| Engine cooling | Air |
| Air filter type | Heavy-Duty Canister Style |
| Power/fuel type | Gasoline |
| Engine lubrication type | Full pressure with oil filter |
| Oil filter | Yes |
| Fuel tank volume (with reserve) | 7 gal (US) |
| Fuel tank location | Side (Single) |
| Equipment | |
| Hour meter type | Yes |
| Cup holder | Yes |
| Capacity | |
| Productivity | 3.7 acres/hr |
| Speed forward max | 11 mph |
| Speed forward min | 0 mph |
| Cutting deck | |
| Blade engagement | Electric clutch |
| Clutch rating | 200 ft.lb |
| Blade-tip speed | 93.98 fpm |
| Blade-tip speed | 18,500 m/s |
| Blades | 3 pcs |
| Anti-scalp wheels | 3 |
| Dimensions | |
| Base machine, height | 48 in |
| Base machine, length | 57 in |
| Base machine, width (chute down) | 62 in |
| Base machine, width (chute up) | 50 in |
| Weight | 1,140 lbs |
| Drive system | |
| Transmission type | Pump/Wheel motor |
| Transmission manufacturer | Parker |
| Transmission model | HP1/DL |
| Pump displacement | 12 cm³ |
| Fan-cooled pumps | Yes |
| Approval | |
| Homeowner Warranty | 5 Years or 1,500 Hours (whichever occurs first) |
| Commercial Warranty | 5 Years or 1,500 Hours (whichever occurs first) |
