Commercial Zero-Turn Lawn Mowers

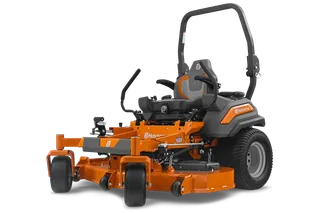

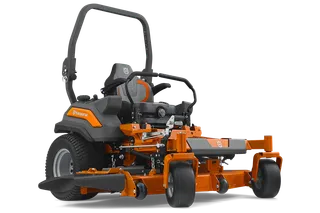

Husqvarna Z560LS




60 in
Cutting width
38.5 hp
Engine Power (As rated by the engine manufacturer)1
FX Series V-Twin
Engine name









Z560LS

The Husqvarna Z500 series zero turn mower represents the latest design focused on productivity, durability and cut quality. Providing extreme comfort, high ground speeds and superior traction adds up to exceptional mowing efficiency. Industrial strength throughout the entire design assures of a long & durable service life while careful design consideration provides unprecedented ease in serviceability.
Features
Specifications
Compare specifications and features with similar Husqvarna products.
Compare

Z560LS ZERO TURN 38.5HP Kawasaki FX EFI, 60" Fabricated

SKU: 970 64 10‑01

Capacity
Z560LS ZERO TURN 38.5HP Kawasaki FX EFI, 60" Fabricated
SKU: 970 64 10‑01
Cutting width60 in
Speed forward min0 mph
Speed forward max12 mph
Emission
Exhaust emissions (CO₂ EU V)2
809 g/kWh
Cutting deck
Cutting methodsCollect/Mulch/Side discharge
Deck thickness10 gauge
Deck Wash PortNo
Greasable mandrelsYes
Nose rollerNo
Powder-coated cutting deckYes
Spindle/mandrel typeAluminium, commercial
Deck lifting systemManual, hand operated
Cutting height steps16
Cutting deck type10-gauge fabricated
Anti-scalp wheels3
Blade engagementElectric clutch
Blades3 pcs
Cutting deck materialSteel
Cutting height, min (approximate)1 in
Cutting height, max (approximate)5 in
Dimensions
Weight1,325 lbs
Base machine, height (ROPS down)46 in
Base machine, height (ROPS up)73 in
Base machine, height46 in
Base machine, length81 in
Base machine, width (chute down)74 in
Base machine, width (chute up)63.75 in
Drive system
Transmission manufacturerHydro-Gear
Transmission typeHydrostatic
Engine
Engine nameFX Series V-Twin
Engine Power (As rated by the engine manufacturer)1
38.5 hp
Cylinder displacement61 cu.inch
Air filter typeHeavy-Duty Canister Style
Cylinders2
Engine coolingAir
Engine lubrication typeFull pressure with oil filter
Fuel tank locationSide (Dual)
Fuel tank volume (with reserve)12 gal (US)
Motor/engine manufacturerKawasaki
Oil filterYes
Equipment
Seat typePremium, suspension
Cup holderYes
Hinged armrestsStandard
Hour meter typeYes
ROPSYes
Seat back heightHigh
Seat materialVinyl
Control
ConnectivityNot applicable
Reviews
Services
Owner support
Manuals, handbooks, spare parts, guides, and related information for Z560LS can be found in the product support.
Product support for Z560LS
Disclaimer:
  • 1Engine Power (As rated by the engine manufacturer): Gross power rating as per SAE J1995, at specified RPM
  • 2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
