1/13
14 in
Blade diameter, max
5 in
Cutting depth, max
5 hp
Output power1
Product Options
Cutting depth, max
Blade diameter, max
Shipping & Returns
Shipping & Returns
Husqvarna aims to deliver orders promptly, so changes or cancellations are not accepted once an order is placed.
Husqvarna offers a refund for online purchases if you are not satisfied, minus any shipping or restocking fees.
Warranty
Warranty
At Husqvarna, we're committed to ensuring your satisfaction. Our warranty covers any defects in material or workmanship under normal use during the warranty period.
K 770

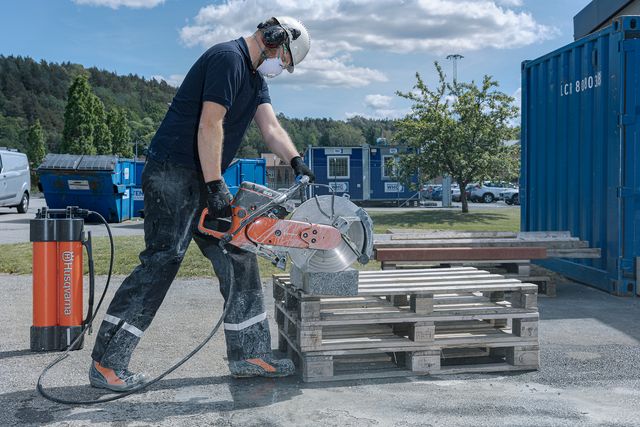

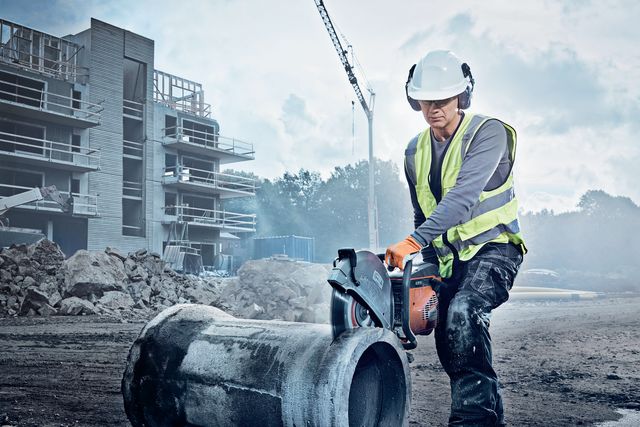

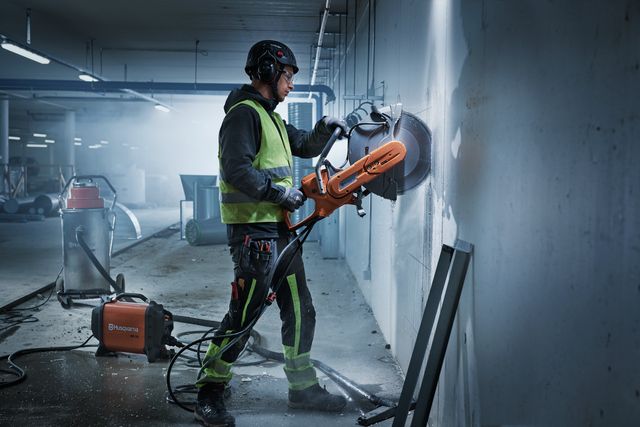

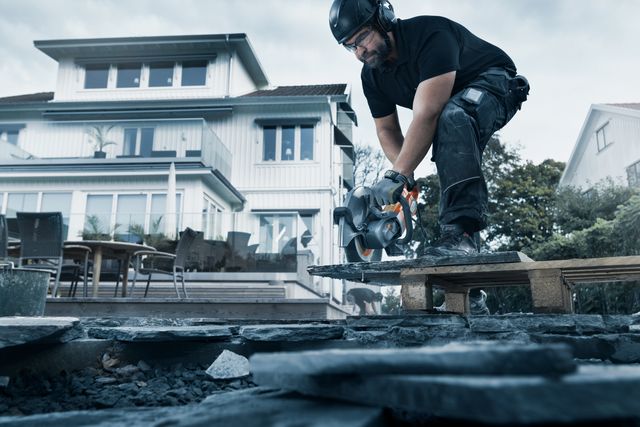

The Husqvarna K 770 is a powerful all-round power cutter with features that make it one of the best power cutters on the market. Equipped with semi-automatic SmartTension™ system allows for optimal power transmission, minimum wear and maximum belt life. The light weight, outstanding power-to-weight ratio, the reliable start and exceptionally low vibrations mean less strain and maximised productivity. Suitable for road work and easy to cut in a straight or curved track or close to sidewalk when used with KV7 trolley.
Features
Features
Specifications
Specifications
Compare specifications and features with similar Husqvarna products.
Compare| Engine | POWER CUTTER K 770 14" | 1" / 20mm SKU: 967 68 21‑01 | POWER CUTTER K 770 12" | 1" / 20mm SKU: 967 80 85‑01 |
|---|---|---|
Output power1 | 5 hp | 5 hp |
Cylinder displacement | 4.48 cu.inch | 4.48 cu.inch |
Electrode gap | 0.02 in | 0.02 in |
Cylinders | 1 | 1 |
Number of strokes | 2-stroke engine | 2-stroke engine |
| Cutting deck | POWER CUTTER K 770 14" | 1" / 20mm SKU: 967 68 21‑01 | POWER CUTTER K 770 12" | 1" / 20mm SKU: 967 80 85‑01 |
|---|---|---|
Cutting depth, max | 5 in | 4 in |
| Emission | POWER CUTTER K 770 14" | 1" / 20mm SKU: 967 68 21‑01 | POWER CUTTER K 770 12" | 1" / 20mm SKU: 967 80 85‑01 |
|---|---|---|
Exhaust emissions (CO₂ EU V)2 | 711 g/kWh | 711 g/kWh |
| Cutting System | POWER CUTTER K 770 14" | 1" / 20mm SKU: 967 68 21‑01 | POWER CUTTER K 770 12" | 1" / 20mm SKU: 967 80 85‑01 |
|---|---|---|
Blade diameter, max | 14 in | 12 in |
Arbor diameter | 1-7/8B | 1-7/8B |
Blade thickness, max | 0.2 in | 0.2 in |
Peripheral speed, max | 18,000 fpm | 16,000 fpm |
| Dimensions | POWER CUTTER K 770 14" | 1" / 20mm SKU: 967 68 21‑01 | POWER CUTTER K 770 12" | 1" / 20mm SKU: 967 80 85‑01 |
|---|---|---|
Product size length | 23.82 in | 23.82 in |
Product size width | 8.86 in | 8.86 in |
Product size height | 16.34 in | 15.39 in |
Weight | 22.4 lbs | 22 lbs |
| Sound and noise | POWER CUTTER K 770 14" | 1" / 20mm SKU: 967 68 21‑01 | POWER CUTTER K 770 12" | 1" / 20mm SKU: 967 80 85‑01 |
|---|---|---|
Sound power level, guaranteed (LWA) | 115 dB(A) | 115 dB(A) |
Sound pressure level at operators ear (LpA) | 101 dB(A) | 101 dB(A) |
| Vibration | POWER CUTTER K 770 14" | 1" / 20mm SKU: 967 68 21‑01 | POWER CUTTER K 770 12" | 1" / 20mm SKU: 967 80 85‑01 |
|---|---|---|
Vibrations left/front handle | 2 m/s² | 2.1 m/s² |
Vibrations right/rear handle | 2.3 m/s² | 2.3 m/s² |
Accessories
(1)
Accessories
(1)
Here are suitable accessories for K 770. Looking for spare parts?
See all spare parts for K 770
Reviews
Reviews
Services
Services
Owner support
Owner support
Manuals, handbooks, spare parts, guides, and related information for K 770 can be found in the product support.
Product support for K 770Disclaimer:
- 1Output power: Petrol products - Net power rating as per ISO 7293, Battery products measured comparable to petrol products
- 2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
