Chainsaws

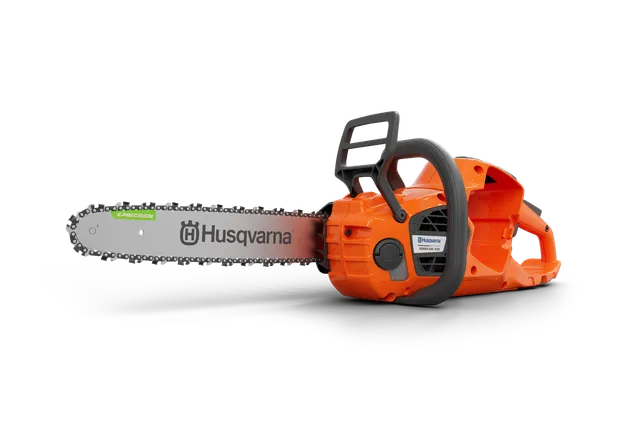

Parts, manuals and support for 435i (tool only)
All the support you need for 435i (tool only). Manuals, spare parts, guides, how-to’s, and more.
Currently available
Go to 435i (tool only) product pageChoose your SKU
For more product support please choose your SKU below.
Spare parts
Choose the part you wish to repair
CHAIN BRAKE
Name
Price
Shop
Support content
Manuals & Documents
(2)
Manuals & Documents
(2)
Showing the latest version of manual and documents for 435i (tool only). For earlier versions, see link below to search all manuals & documents..
Illustrated Part List
Published: 5/2/2025238 kB,ENOperator's Manual
Published: 8/21/20244.44 MB,EN, ES, FR
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications
| Engine | 435i, 16" 0.325" mini, Standard, SP21G SKU: 970 79 38‑24 |
|---|---|
Chain speed at max power | 68.93 fts |
Output shaft power | 2.1 hp |
Battery voltage | 40 V |
Battery Chemistry | Li-Ion |
| Dimensions | 435i, 16" 0.325" mini, Standard, SP21G SKU: 970 79 38‑24 |
|---|---|
Weight (excl. battery and cutting equipment) | 5.95 lbs |
| Equipment | 435i, 16" 0.325" mini, Standard, SP21G SKU: 970 79 38‑24 |
|---|---|
Recommended bar length, min | 14 in |
Recommended bar length, max | 16 in |
Pitch | .325" mini |
Chain type | SP21G |
Battery | Not included |
Bar length | 40.6 cm |
Bar length (inch) | 16 in |
| Vibration | 435i, 16" 0.325" mini, Standard, SP21G SKU: 970 79 38‑24 |
|---|---|
Equivalent vibration level (ahv, eq) front handle | 3.5 m/s² |
Equivalent vibration level (ahv, eq) rear handle | 2.7 m/s² |
| Sound and noise | 435i, 16" 0.325" mini, Standard, SP21G SKU: 970 79 38‑24 |
|---|---|
Sound pressure level at operators ear (LpA) | 90 dB(A) |
Sound power level, guaranteed (LWA) | 103 dB(A) |
