Grass Trimmers
Parts, manuals and support for 122LX
All the support you need for 122LX. Manuals, spare parts, guides, how-to’s, and more.
Currently available
Go to 122LX product pageChoose your SKU
For more product support please choose your SKU below.
Spare parts
Choose the part you wish to repair

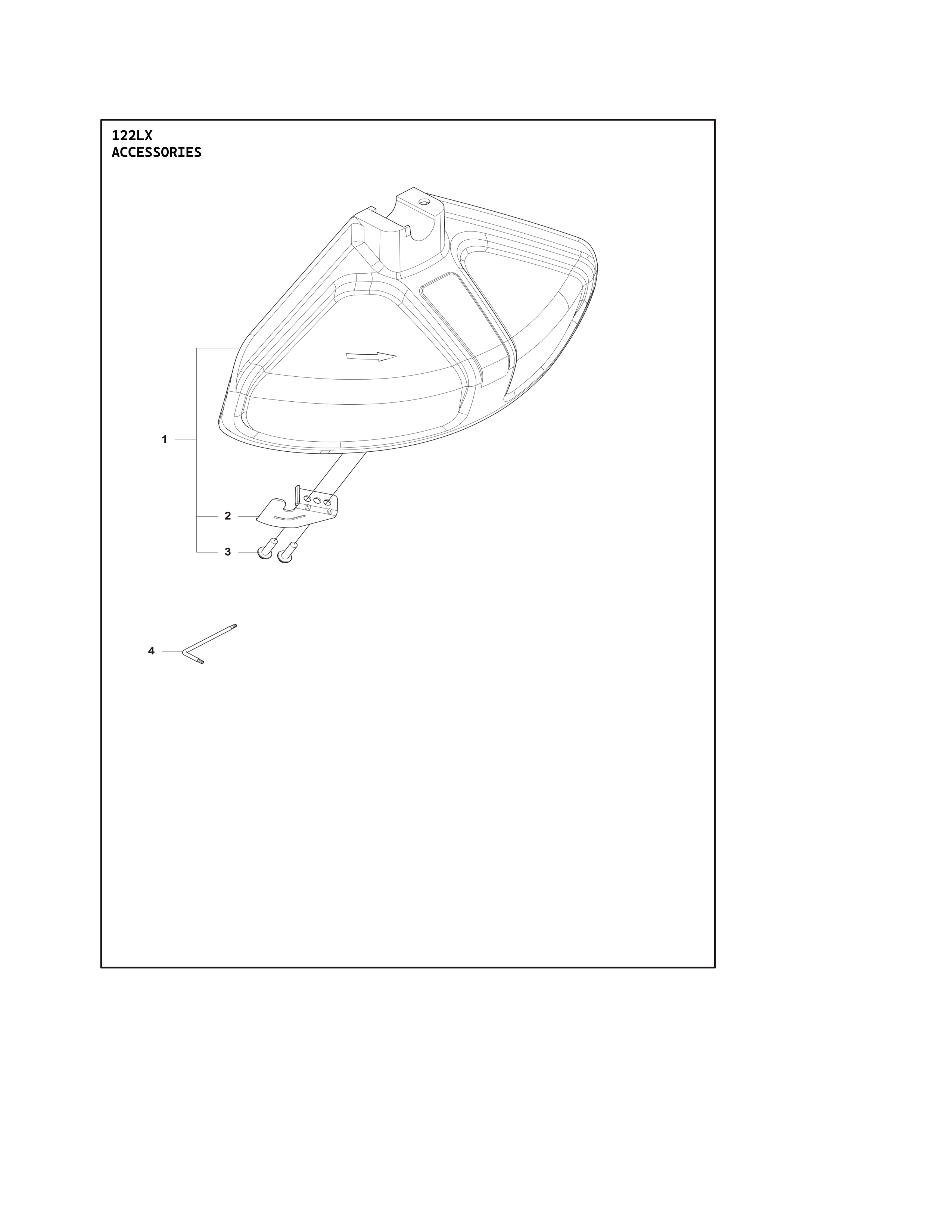

ACCESSORIES
Name
Price
Shop
Support content
Manuals & Documents
(2)
Manuals & Documents
(2)
Showing the latest version of manual and documents for 122LX. For earlier versions, see link below to search all manuals & documents..
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications
| Engine | Rapid Replace US49, CA SKU: 970 79 61‑05 |
|---|---|
Output shaft power | 0.8 hp |
Cylinder displacement | 1.32 cu.inch |
Maximum rpm output shaft | 6,200 rpm |
Fuel tank volume | 10.14 fl oz (US) |
Fuel tank volume | 0.3 l |
| Capacity | Rapid Replace US49, CA SKU: 970 79 61‑05 |
|---|---|
Cutting width | 17 in |
| Dimensions | Rapid Replace US49, CA SKU: 970 79 61‑05 |
|---|---|
Weight (excl. cutting equipment) | 10.14 lbs |
Tube diameter | 1 in |
Product size length | 67.44 in |
| Equipment | Rapid Replace US49, CA SKU: 970 79 61‑05 |
|---|---|
Harness | Not included |
Saw blade | Not included |
Trimmer head | R25 |
Grass blade | Not included |
| Emission | Rapid Replace US49, CA SKU: 970 79 61‑05 |
|---|---|
Exhaust emissions (CO₂ EU V) | 1,528 g/kWh |
| Vibration | Rapid Replace US49, CA SKU: 970 79 61‑05 |
|---|---|
Equivalent vibration level (ahv, eq) front handle | 2.97 m/s² |
Equivalent vibration level (ahv, eq) rear handle | 3.72 m/s² |
| Sound and noise | Rapid Replace US49, CA SKU: 970 79 61‑05 |
|---|---|
Sound power level, guaranteed (LWA) | 102 dB(A) |
Sound pressure level at operators ear (LpA) | 85 dB(A) |
Didn't find what you were looking for?
Use our Product Assistant to find support for your Husqvarna products easily. If needed, you are welcome to contact us for further assistance.
