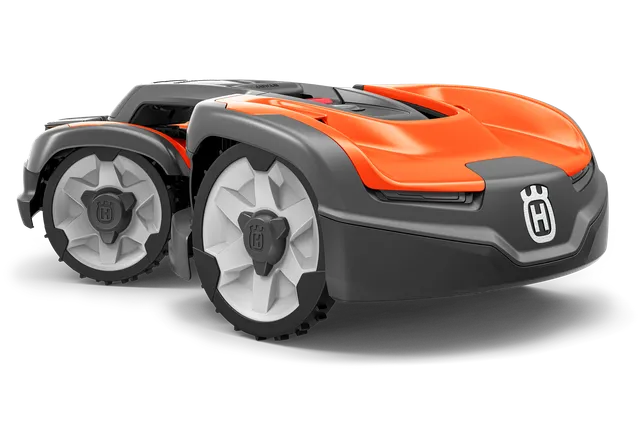

Parts, manuals and support for AUTOMOWER® 535 AWD
All the support you need for AUTOMOWER® 535 AWD. Manuals, spare parts, guides, how-to’s, and more.
Choose article number
To show you the right support, choose an article number from this list.
Where to find my article numberSupport content
Manuals & Documents(19)
Manuals & Documents
(19)
Showing the latest version of manual and documents for AUTOMOWER® 535 AWD. For earlier versions, see link below to search all manuals & documents..
Operator's Manual
Published: 05/01/2024
7.43 MB,
EN
Declaration of Conformity
Published: 03/10/2023
179 kB,
EN
Quick Guides
Published: 03/05/2023
9.96 MB,
EN, DE, FR, IT
Illustrated Part List
Published: 15/05/2020
1.04 MB,
ANY
Spare parts(12)
Spare parts
(12)
Accessories(5)
Accessories
(5)
All accessories for AUTOMOWER® 535 AWD.
Troubleshooting & help(184)
Troubleshooting & help
(184)
Frequently read self-service articles about AUTOMOWER® 535 AWD.
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Services & apps(2)
Services & apps
(2)
Specifications
Specifications
Automower® 535 AWDArt no: 970 65 17‑03 | |
|---|---|
| Cutting System | Automower® 535 AWD Art no: 970 65 17‑03 |
| Cutting system | 5 pivoting razor blades |
| Cutting width | 22 cm |
| Skid plate | Yes |
| Dual cutting direction | Yes |
| Capacity | |
| Working area capacity (±20) | 3,500 m² |
| Maximum slope performance at boundary | 50 % |
| Maximum slope performance inside installation | 70 % |
| Max active time | 24 h |
| Search system | Pentasearch |
| Follow guide | 3 |
| Control | |
| User Interface | Professional User Interface/App |
| Display | None |
| Smart Home integration | Yes |
| Firmware Update | FOTA |
| Product data | |
| Sound level perceived | 60 dB(A) |
| Protection Index (IP Code) | IPX4 |
| Typical mow time on one charge | 145 min |
| Mean energy consumption per month at maximum use | 24 kWh |
| Overall dimensions | |
| Weight (complete product w/o side packed articles) | 17.6 kg |
| Product size length | 93 cm |
| Product size width | 55 cm |
| Product size height | 29 cm |
| Safety | |
| GPS Theft tracking | Yes |
| PIN code | Yes |
| Lift sensor | Yes |
| Tilt sensor | Yes |
