Husqvarna Charging Cabinet L, 230V
What's included
What's included
Husqvarna Charging Cabinet L, 230V - 970 79 01‑02
Included
- Potential-free alarm interfaceYes
- Smoke detectorYes
- Temperature sensorYes
- Active ventilationYes
- Remote signal moduleYes
- Relay moduleYes
Not included
- Fire suppression unit
- Timer
- 400V cable

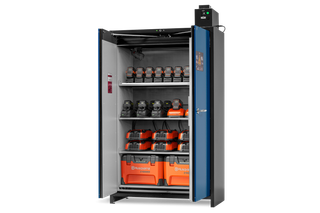

Large, fire-resistant 230V battery cabinet with smart monitoring and active ventilation.
The Husqvarna Battery Charging Cabinet L is engineered for safe and approved storage and charging of lithium-ion batteries. This spacious cabinet L offers 90 minutes of fire resistance, both from the outside in and from the inside out*, even in the event of a thermal runaway by means of a real fire test. It is equipped with a smoke detector and a temperature sensor for early detection of incipient fires or ventilation failures. The potential-free alarm system ensures that on-site alarms are promptly forwarded, quick and targeted action can be taken immediately. In addition, the active ventilation system maintains optimal conditions for batteries and chargers, preventing heat build-up during the charging process. The cabinet comes ready to with the integrated outlet strips and height-adjustable shelves for flexible, customized storage solutions.
*According to EN 14470-1 and EN 1363-1, VDMA 24994
*According to EN 14470-1 and EN 1363-1, VDMA 24994
Product Information
Specifications
Specifications
Compare specifications and features with similar Husqvarna products.
Compare| Product data | Battery charging cabinet L 230V Art no: 970 79 01‑02 |
|---|---|
Weight (complete product w/o side packed articles) | 505 kg |
Number of storage levels | 4 |
Number of protective sockets | 32 |
Potential-free alarm interface | Yes |
Smoke detector | Yes |
Temperature sensor | Yes |
Fire suppression unit | No |
Active ventilation | Yes |
Remote signal module | Yes |
Relay module | Yes |
Timer | No |
400V cable | No |
GTIN-13/EAN | 7333377645479 |
| Electric information | Battery charging cabinet L 230V Art no: 970 79 01‑02 |
|---|---|
Fuse protection (1-phase) | 13 A |
Power max. (1-phase) | 2.99 kW |
| Dimensions | Battery charging cabinet L 230V Art no: 970 79 01‑02 |
|---|---|
External dimensions W x D x H [mm] | 1193x615x2224 |
Internal dimensions W x D x H [mm] | 1050x522x1647 |
