Garden Tractors

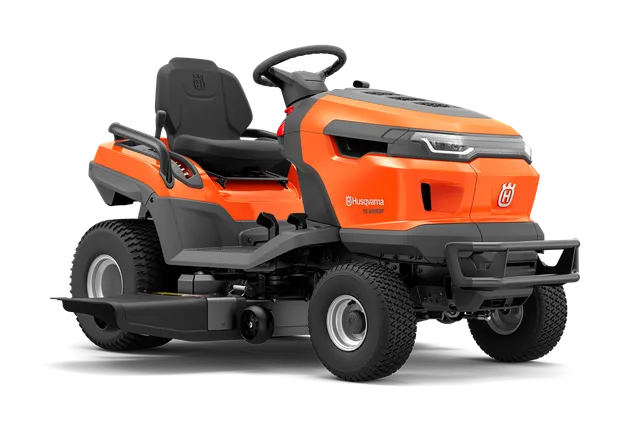

Parts, manuals and support for TS 222TDF
All the support you need for TS 222TDF. Manuals, spare parts, guides, how-to’s, and more.
Choose article number
To show you the right support, choose an article number from this list.
Spare parts
Choose the part you wish to repair
Article
Art. number
Support content
Manuals & Documents
(1)
Manuals & Documents
(1)
Showing the latest version of manual and documents for TS 222TDF. For earlier versions, see link below to search all manuals & documents..
Accessories
(2)
Accessories
(2)
All accessories for TS 222TDF.
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications
TS222TDF TRACTOR AU, NZ Art no: 970 74 07‑01 | |
|---|---|
| Cutting deck | TS222TDF TRACTOR AU, NZ Art no: 970 74 07‑01 |
Cutting width | 122 cm |
| Engine | |
Cylinder displacement | 764 cm³ |
Motor/engine manufacturer | Husqvarna |
Engine name | HV 764AE |
Net power at preset rpm Energy | 17 kW |
Net power at preset rpm | 3 100 rpm |
Cylinders | 2 |
Power/fuel type | Petrol |
Oil filter | Yes |
| Drive system | |
Drive method | Dual pedal-operation |
Speed reverse max | 6 km/h |
| Equipment | |
Seat material | PU |
Front-End Protection | Brush Guard Style Bumper |
Hour meter type | Digital |
Seat back height | Medium |
Steering wheel type | Ergonomic - soft grip |
Collector | Available as accessory |
| Emission | |
Exhaust emissions (CO₂ EU V) | 806 g/kWh |
| Transmission | |
Transmission type | Hydrostatic |
Transmission manufacturer | Tuff Torq |
