1/3
764 cm³
Cylinder displacement
17 kW
Net power at preset rpm Energy1
Petrol
Power/fuel type
High performance mowing with 122 cm Clear Cut™ cutting deck

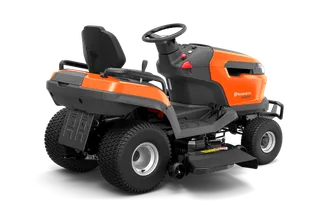

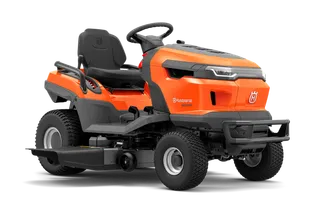

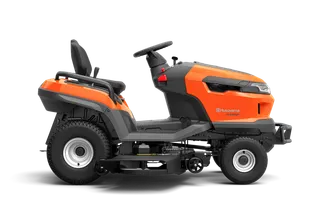

Husqvarna TS 222TDF garden tractor offers comfort-enhancing features and a wide cutting deck to make the maintenance of large lawns efficient and pleasant. Easy-to-reach controls and levers, quickly adjusted seat, and handles contribute to high comfort and good ergonomics. So does the cruise control that lets you rest your foot when mowing large unobstructed areas. The 122 cm specially-designed Clear Cut™ cutting deck is built for superior performance and excellent cutting results, and with a wide range of cutting heights, adjustments can be made to suit different needs and grass conditions. The adjustment is spring assisted to reduce strain for operator. TS 222TDF also features anti-spin transmission, providing improved traction that facilitates driving in hilly terrain.
Features
Features
Specifications
Specifications
Compare specifications and features with similar Husqvarna products.
CompareAU, NZ 970 74 07‑01 | |
|---|---|
Cutting deck | |
Cutting width | 122 cm |
Cutting height max | 105 mm |
Cutting height min | 25 mm |
Nose roller | Yes |
Anti-scalp wheels | 4 |
AU, NZ 970 74 07‑01 | |
|---|---|
Drive system | |
Drive method | Dual pedal-operation |
Speed forward max | 10 km/h |
Speed reverse max | 6 km/h |
AU, NZ 970 74 07‑01 | |
|---|---|
Engine | |
Cylinder displacement | 764 cm³ |
Engine brand | Husqvarna |
Motor/engine manufacturer | Husqvarna |
Engine name | HV 764AE |
Net power at preset rpm Energy1 | 17 kW |
Net power at preset rpm | 3 100 rpm |
Cylinders | 2 |
Power/fuel type | Petrol |
Oil filter | Yes |
AU, NZ 970 74 07‑01 | |
|---|---|
Equipment | |
Seat material | PU |
Seat type | Comfort |
Front-End Protection | Brush Guard Style Bumper |
Hour meter type | Digital |
Seat back height | Medium |
Steering wheel type | Ergonomic - soft grip |
Collector | No |
AU, NZ 970 74 07‑01 | |
|---|---|
Transmission | |
Transmission type | Hydrostatic with Automatic Differential Lock |
Transmission Brand | Tuff Torq |
AU, NZ 970 74 07‑01 | |
|---|---|
Emission | |
Exhaust emissions (CO₂ EU V)2 | 806 g/kWh |
AU, NZ 970 74 07‑01 | |
|---|---|
Dimensions | |
Base machine, height | 112,4 cm |
Base machine, length | 202,9 cm |
Base machine, width (chute up) | 132 cm |
Base machine, width (chute down) | 155 cm |
Tyre dimensions, front | 15x6-6 |
Tyre dimensions, rear | 20x10-8 |
Accessories
(7)
Accessories
(7)
Here are suitable accessories for TS 222TDF. Looking for spare parts?
See all spare parts for TS 222TDF
Owner support
Owner support
Manuals, handbooks, spare parts, guides, and related information for TS 222TDF can be found in the product support.
Product support for TS 222TDFDisclaimer:
- 1Net power at preset rpm Energy: Net power rating as per SAE J1349, at specified RPM as specified by the engine manufacturer
- 2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
