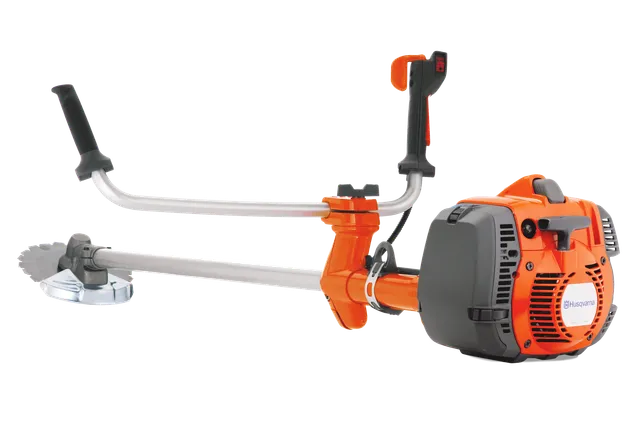

Forestry Clearing Saws
Parts, manuals and support for 545FX
All the support you need for 545FX. Manuals, spare parts, guides, how-to’s, and more.
Discontinued
See all Forestry Clearing Saws for saleChoose article number
To show you the right support, choose an article number from this list.
Where to find my article numberSupport content
Manuals & Documents
(29)
Manuals & Documents
(29)
Showing the latest version of manual and documents for 545FX. For earlier versions, see link below to search all manuals & documents..
Troubleshooting & help
(10)
Troubleshooting & help
(10)
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications
| Engine | Scarlett 225-24 (1"), All ex US50 Art no: 966 01 56‑01 |
|---|---|
Output shaft power | 2.2 kW |
Cylinder displacement | 45.7 cm³ |
Fuel tank volume | 0.9 l |
Fuel Consumption | 450 g/kWh |
Maximum power speed | 9,000 rpm |
Idling speed | 2,700 rpm |
Maximum rpm output shaft | 10,100 rpm |
| Dimensions | Scarlett 225-24 (1"), All ex US50 Art no: 966 01 56‑01 |
|---|---|
Weight (excl. cutting equipment) | 8.2 kg |
Tube diameter | 32 mm |
| Emission | Scarlett 225-24 (1"), All ex US50 Art no: 966 01 56‑01 |
|---|---|
Exhaust emissions (CO₂ EU V) | 910 g/kWh |
| Equipment | Scarlett 225-24 (1"), All ex US50 Art no: 966 01 56‑01 |
|---|---|
Saw blade | Scarlett 225-24 |
Harness | Balance XT2 |
| Transmission | Scarlett 225-24 (1"), All ex US50 Art no: 966 01 56‑01 |
|---|---|
Gear ratio | 1.29 |
Drive gear angle | 24 ° |
| Sound and noise | Scarlett 225-24 (1"), All ex US50 Art no: 966 01 56‑01 |
|---|---|
Sound power level, guaranteed (LWA) | 114 dB(A) |
Sound pressure level at operators ear (LpA) | 99 dB(A) |
| Vibration | Scarlett 225-24 (1"), All ex US50 Art no: 966 01 56‑01 |
|---|---|
Equivalent vibration level (ahv, eq) left handle | 2 m/s² |
Equivalent vibration level (ahv, eq) right handle | 3.2 m/s² |
