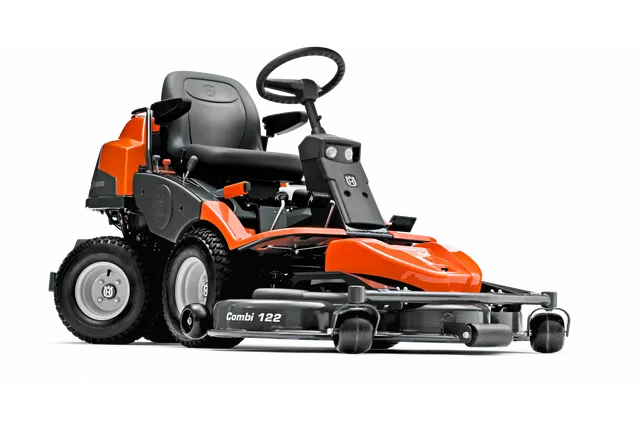

Rider PF 21/PF 21 AWD/R 422Ts/R 422Ts AWD

Parts, manuals and support for R 422Ts AWD

All the support you need for R 422Ts AWD. Manuals, spare parts, guides, how-to’s, and more.

Choose article number
To show you the right support, choose an article number from this list.

Support content

Accessories
(11)
Warranty

All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.

Warranty policy
Warranty service

Check your warranty

Login or create an account on MyPages to check your warranty period.
MyPages

Is your product broken?

If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer

General questions

You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna

Specifications

R 422Ts AWD (-2011)

Art no: 966 63 25‑01

Cutting deck
R 422Ts AWD (-2011)
Art no: 966 63 25‑01
Uncut circle60 cm
Cutting width, min103 cm
Cutting width, max122 cm
Cutting height min25 mm
Cutting height max75 mm
Blade engagementAutomatic
Engine
Power/fuel typePetrol
Net power at preset rpm Energy12,6 kW
Motor/engine manufacturerBriggs & Stratton
Engine nameEndurance Series V-Twin
Cylinder displacement656 cm³
Cylinders2
Engine coolingAir
Engine lubrication typeFull pressure
Oil filterYes
Dimensions
Tyre dimensions, front195/65-8
Tyre dimensions, rear195/65-8
Wheelbase100 cm
Ground clearance90 mm
Base machine, length207 cm
Base machine, width90 cm
Base machine, height116 cm
Gross weight towed
150 kg
Vibration
Vibration level steering wheel3,5 m/s²
Vibration level seat0,7 m/s²
Drive system
Transmission typeHydrostatic
Transmission manufacturer, rearKanzaki
Drive methodDual pedal-operation
Speed forward max11 km/h
Speed reverse max4,3 mph
Speed reverse max7 km/h
Transmission manufacturer, frontKanzaki
Transmission model, frontKTM10D
Transmission model, rearK664
Battery
Battery capacity24 Ah
Battery typeLead-Acid
Battery pack weight7,2 kg
Battery manufacturerGlobal
Equipment
Seat suspensionYes
Seat typeProfessional
Hour meter typeDigital with pre-programmed service intervals
Seat materialVinyl
Seat back heightHigh
Foldable seatYes
Steering wheel typeComfort
Parking brake, typeDisc
Sound and Noise
Sound pressure level at operators ear88 dB(A)
Sound power level, guaranteed (LWA)103 dB(A)
Sound power level, measured102 dB(A)
