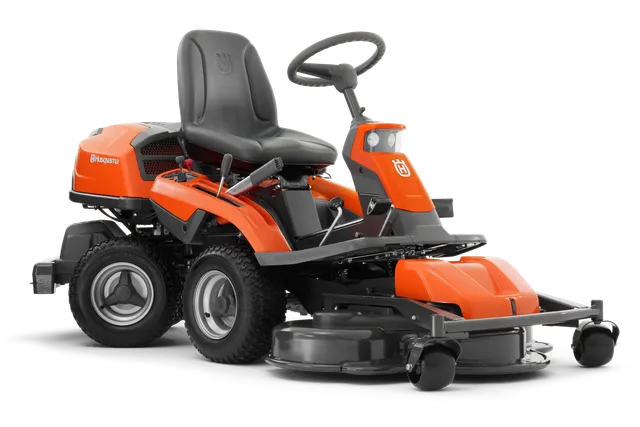

Rider 316

Parts, manuals and support for R 316T

All the support you need for R 316T. Manuals, spare parts, guides, how-to’s, and more.

Choose article number
To show you the right support, choose an article number from this list.

Support content

Manuals & Documents
(2)
Showing the latest version of manual and documents for R 316T. For earlier versions, see link below to search all manuals & documents..
Accessories
(13)
Warranty

All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.

Warranty policy
Warranty service

Check your warranty

Login or create an account on MyPages to check your warranty period.
MyPages

Is your product broken?

If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer

General questions

You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna

Specifications

R 316T (2015- )

Art no: 967 29 16‑01

Cutting deck
R 316T (2015- )
Art no: 967 29 16‑01
Uncut circle30 cm
Cutting width, min94 cm
Cutting width, max112 cm
Cutting height min25 mm
Cutting height max75 mm
Blade engagementAutomatic
Engine
Power/fuel typePetrol
Net power at preset rpm Energy9,6 kW
Motor/engine manufacturerKawasaki
Engine nameFS Series V-Twin
Cylinder displacement603 cm³
Cylinders2
Engine coolingAir
Engine lubrication typeFull pressure
Oil filterYes
Dimensions
Tyre dimensions, front170/60-8
Tyre dimensions, rear170/60-8
Wheelbase88,7 cm
Ground clearance105 mm
Base machine, length202 cm
Base machine, width89 cm
Base machine, height115 cm
Gross weight302 kg
Gross weight towed
125 kg
Vibration
Vibration level steering wheel2,5 m/s²
Vibration level seat0,7 m/s²
Drive system
PTO (Power Take Off)Belt Drive
Transmission typeHydrostatic
Drive methodDual pedal-operation
Speed forward max9 km/h
Speed reverse max5,6 mph
Speed reverse max9 km/h
Battery
Battery capacity24 Ah
Battery typeLead-Acid
Battery pack weight7,2 kg
Battery manufacturerGlobal
Equipment
Seat suspensionYes
Hour meter typeDigital with pre-programmed service intervals
Seat materialPU
Seat back heightHigh
Foldable seatYes
Steering wheel typeComfort
Parking brake, typeDisc
Sound and Noise
Sound pressure level at operators ear83 dB(A)
Sound power level, guaranteed (LWA)98 dB(A)
Sound power level, measured97 dB(A)
