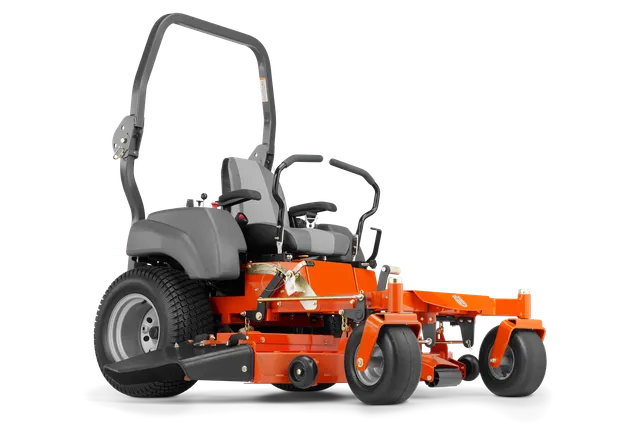

Zero Turn Mower M-ZT61

Parts, manuals and support for M-ZT 61

All the support you need for M-ZT 61. Manuals, spare parts, guides, how-to’s, and more.

Choose article number
To show you the right support, choose an article number from this list.

Support content

Accessories
(3)
Warranty

All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.

Warranty policy
Warranty service

Check your warranty

Login or create an account on MyPages to check your warranty period.
MyPages

Is your product broken?

If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer

General questions

You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna

Specifications

Kawasaki

Art no: 967 17 70‑10

Cutting deck
Kawasaki
Art no: 967 17 70‑10
Cutting Methods (filter)Collecting, Mulching, Side discharge
Cutting deck typeFabricated flat
Cutting height min38,1 mm
Cutting height max114,3 mm
Capacity
Cutting width155 cm
Speed forward min0 km/h
Speed forward max16,1 km/h
Engine
Engine nameFS Series V-Twin
Output shaft power17,15 kW
Cylinder displacement726 cm³
Fuel tank volume18,9 l
Dimensions
Weight (complete product w/o side packed articles)358,3 kg
Equipment
Seat typeDeluxe, armrests
