LC 519AP

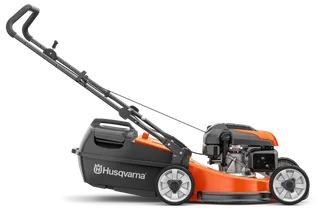

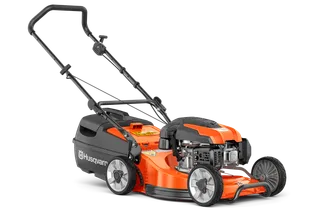

A commercial lawnmower with a large 48cm (19”) pressed steel cutting deck and large hard collector. Equipped with the fully commercial and high-specified four-stroke engine Husqvarna HS 166AP. Features include dual ball bearing wheels, comfort grip folding handle with quick action cam locks and eight cutting heights. Comes complete with mulch insert.
Features
Features
Specifications
Specifications
Compare specifications and features with similar Husqvarna products.
CompareLC 519AP LAWN MOWERArt no: 970 60 92‑01 | |
|---|---|
| Engine | LC 519AP LAWN MOWER Art no: 970 60 92‑01 |
Net power at preset rpm Energy | 2,75 kW |
| Net power at preset rpm | 2 900 rpm |
| Engine brand | Husqvarna |
| Engine name | HS 166AP |
| Cylinder displacement | 166 cm³ |
| Engine lubrication type | Splash |
| Engine cooling | Air |
| Material | |
| Cutting deck material | Aluminium |
| Rims, material | Plastic |
| Emission | |
Exhaust emissions (CO₂ EU V) | 922,38 g/kWh |
| Cutting deck | |
| Cutting methods | Collection/BioClip® |
| Cutting width | 48 cm |
| BioClip® kit | Not available as accessory (NOT AVAILABLE) |
| BioClip® plug | Included |
| Cutting height steps | 10 |
| Cutting height adjustment | Central |
| Cutting height max | 80 mm |
| Cutting height min | 16 mm |
| Drive system | |
| Drive system | Push |
| Drive wheels | N/A |
| Speed forward max | 0 km/h |
| Speed forward min | 0 km/h |
| Equipment | |
| Collector type | Rigid box |
| Collector volume | 44 l |
| Handle type | Up-turned |
| Handle height adjustment | None |
| Wheel bearing, front/rear | Yes/Yes |
| Foldable handle | Yes |
| Soft grip | Yes |
| Side adjustable handle | No |
| Throttle control | Yes |
| Water hose connection | No |
| Blade brake clutch (BBC) | No |
| Dimensions | |
| Wheel size, Front | 210 mm |
| Wheel size, Rear | 210 mm |
| Weight (complete product w/o side packed articles) | 29,5 kg |
| Wheelbase | 55 cm |
| Sound and noise | |
| Sound pressure level at operators ear | 83 dB(A) |
| Sound power level, measured | 94 dB(A) |
| Sound power level, guaranteed (LWA) | 96 dB(A) |
| Vibration | |
| Vibrations handlebar | 9,9 m/s² |
