Self-propelled, single speed
Drive system
BioClip®
Cutting methods
48 cm
Cutting width
What's included
What's included
Husqvarna KLIPPO LB 548SQe - 970 60 90‑01
Not included
- BioClip® kit
- BioClip® plug

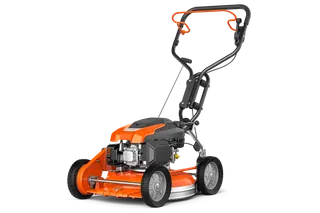

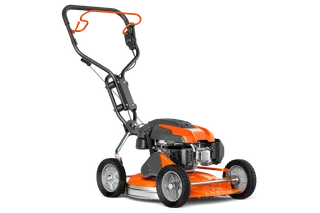

KLIPPO LB 548SQe
KLIPPO LB 548SQe, a compact and dedicated BioClip® mower with front-wheel drive for commercial use. The standard sized 48 cm cutting deck makes it to a perfect solution for complex and narrow areas or as a complementary trimming tool for ride-on or robotic mowers. The model is built on the highly respected KLIPPO platform, well-known for outstanding durability and reliable performance. Equipped with the fully commercial and high-specified Husqvarna HS 166AP engine, cast aluminium decks and an ergonomic side-adjustable and effective anti-vibrated handle system, which help the model fulfil A(8) EN836. KLIPPO LB 500 Series, commercial models with outstanding performance and durability for a long-term relation.
Features
Features
Specifications
Specifications
Compare specifications and features with similar Husqvarna products.
CompareKLIPPO LB 548SQe LAWN MOWER HS 166AP engine 970 60 90‑01 | |
|---|---|
Engine | |
Net power at preset rpm Energy1 | 2,75 kW |
Net power at preset rpm | 2 900 rpm |
Engine brand | Husqvarna |
Engine name | HS 166AP |
Cylinder displacement | 166 cm³ |
Engine lubrication type | Splash |
Engine cooling | Air |
KLIPPO LB 548SQe LAWN MOWER HS 166AP engine 970 60 90‑01 | |
|---|---|
Emission | |
Exhaust emissions (CO₂ EU V)2 | 922,38 g/kWh |
KLIPPO LB 548SQe LAWN MOWER HS 166AP engine 970 60 90‑01 | |
|---|---|
Material | |
Cutting deck material | Aluminium |
Rims, material | Steel |
KLIPPO LB 548SQe LAWN MOWER HS 166AP engine 970 60 90‑01 | |
|---|---|
Cutting deck | |
Cutting methods | BioClip® |
Cutting width | 48 cm |
BioClip® kit | Not available as accessory (NOT AVAILABLE) |
BioClip® plug | N/A |
Cutting height steps | 6 |
Cutting height adjustment | Central, spring-assisted |
Cutting height max | 60 mm |
Cutting height min | 30 mm |
KLIPPO LB 548SQe LAWN MOWER HS 166AP engine 970 60 90‑01 | |
|---|---|
Drive system | |
Drive system | Self-propelled, single speed |
Drive wheels | Front |
Speed forward max | 4,5 km/h |
Speed forward min | 0 km/h |
KLIPPO LB 548SQe LAWN MOWER HS 166AP engine 970 60 90‑01 | |
|---|---|
Equipment | |
Collector type | None |
Collector volume | 0 l |
Handle type | Anti-vibrated |
Handle height adjustment | 2 Step |
Wheel bearing, front/rear | Yes/Yes |
Foldable handle | No |
Soft grip | Yes |
Side adjustable handle | Yes |
Throttle control | No |
Water hose connection | No |
Blade brake clutch (BBC) | No |
KLIPPO LB 548SQe LAWN MOWER HS 166AP engine 970 60 90‑01 | |
|---|---|
Dimensions | |
Wheel size, Front | 203 mm |
Wheel size, Rear | 203 mm |
Weight (complete product w/o side packed articles) | 34,5 kg |
Wheelbase | 52 cm |
KLIPPO LB 548SQe LAWN MOWER HS 166AP engine 970 60 90‑01 | |
|---|---|
Sound and noise | |
Sound pressure level at operators ear (LpA) | 79 dB(A) |
Sound power level, measured | 92 dB(A) |
Sound power level, guaranteed (LWA) | 93 dB(A) |
KLIPPO LB 548SQe LAWN MOWER HS 166AP engine 970 60 90‑01 | |
|---|---|
Vibration | |
Vibrations handlebar | 4 m/s² |
Owner support
Owner support
Manuals, handbooks, spare parts, guides, and related information for KLIPPO LB 548SQe can be found in the product support.
Product support for KLIPPO LB 548SQeDisclaimer:
- 1Net power at preset rpm Energy: Net power rating as per SAE J1349, at specified RPM as specified by the engine manufacturer
- 2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
