1/4
54 in
Cutting width
23.5 hp
Engine Power (As rated by the engine manufacturer)1
Kawasaki
Engine brand

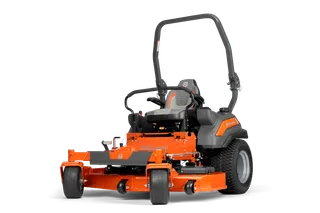

Z454XS
Husqvarna’s XS Series starts with all the benefits of the standard Z400 and takes it to the next level. Upgrades include a suspended seat platform for added comfort, Parker HTE12 transmissions with 23" tires for increased ground speed, premium FX class Kawasaki engines, deeper cutting decks and twin fuel tanks for extended run time.
Features
Features
Specifications
Specifications
Compare specifications and features with similar Husqvarna products.
Compare| Capacity | Z454XS Professional Zero Turn Mower SKU: 970 49 71‑02 |
|---|---|
Cutting width | 54 in |
Speed forward min | 0 mph |
Speed forward max | 11 mph |
| Emission | Z454XS Professional Zero Turn Mower SKU: 970 49 71‑02 |
|---|---|
Exhaust emissions (CO₂ EU V)2 | 953.5 g/kWh |
| Cutting deck | Z454XS Professional Zero Turn Mower SKU: 970 49 71‑02 |
|---|---|
Cutting Methods (filter) | Side discharge |
Cutting methods | Collect/Mulch/Side discharge |
Deck thickness | 10 gauge |
Deck Wash Port | No |
Greasable mandrels | Yes |
Nose roller | No |
Cutting deck surface treatment | Powder coated |
Spindle/mandrel type | Aluminium, commercial |
Deck lifting system | Manual, foot activated |
Cutting height steps | 13 |
Cutting deck type | 10-gauge fabricated |
Anti-scalp wheels | 4 |
Blade engagement | Electric clutch |
Blades | 3 pcs |
Cutting deck material | Steel |
Cutting height min | 1.5 in |
Cutting Height Max | 4.5 in |
| Dimensions | Z454XS Professional Zero Turn Mower SKU: 970 49 71‑02 |
|---|---|
Weight | 961 lbs |
Base machine, height (ROPS down) | 49.75 in |
Base machine, height (ROPS up) | 64.25 in |
Base machine, height | 49.75 in |
Base machine, length | 76.5 in |
Base machine, width (chute down) | 68.25 in |
Base machine, width (chute up) | 55 in |
| Drive system | Z454XS Professional Zero Turn Mower SKU: 970 49 71‑02 |
|---|---|
Transmission manufacturer | Parker |
Transmission type | Hydrostatic |
| Engine | Z454XS Professional Zero Turn Mower SKU: 970 49 71‑02 |
|---|---|
Engine name | FX Series V-Twin |
Engine brand | Kawasaki |
Engine Power (As rated by the engine manufacturer)1 | 23.5 hp |
Cylinder displacement | 44.3 cu.inch |
Air filter type | Heavy-Duty Canister Style |
Cylinders | 2 |
Engine cooling | Air |
Engine lubrication type | Full pressure with oil filter |
Fuel tank location | Side (Dual) |
Fuel tank volume | 12 gal (US) |
Motor/engine manufacturer | Kawasaki |
Oil filter | Yes |
| Equipment | Z454XS Professional Zero Turn Mower SKU: 970 49 71‑02 |
|---|---|
Seat type | Professional, suspension |
Cup holder | Yes |
Hinged armrests | Standard |
Hour meter type | Yes |
ROPS | Standard (foldable) |
Seat back height | High |
Seat material | Vinyl |
| Control | Z454XS Professional Zero Turn Mower SKU: 970 49 71‑02 |
|---|---|
Connectivity | Not applicable |
Accessories
(10)
Accessories
(10)
Reviews
Reviews
Services
Services
Owner support
Owner support
Manuals, handbooks, spare parts, guides, and related information for Z454XS can be found in the product support.
Product support for Z454XSDisclaimer:
- 1Engine Power (As rated by the engine manufacturer): Gross power rating as per SAE J1995, at specified RPM
- 2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
