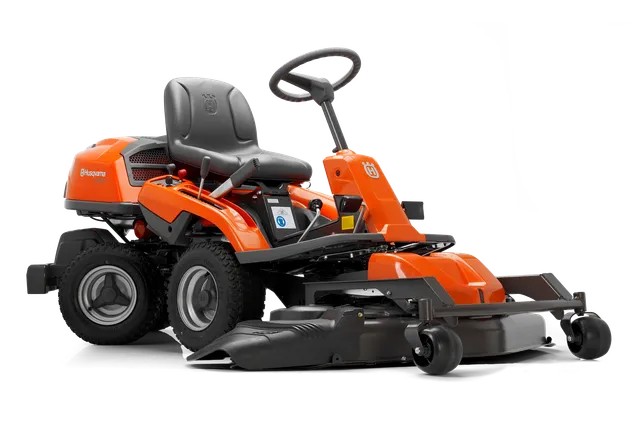

Ride-On Front Mowers
Parts, manuals and support for R 220T
All the support you need for R 220T. Manuals, spare parts, guides, how-to’s, and more.
Discontinued
See all Ride-On Front Mowers for saleChoose your SKU
For more product support please choose your SKU below.
Spare parts
Choose the part you wish to repair
COVER, REAR
Name
SKU
Support content
Accessories
(2)
Accessories
(2)
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications
| Cutting deck | With Side Discharge Deck SKU: 967 03 20‑01 |
|---|---|
Uncut circle | 66 cm |
Cutting width, min | 103 cm |
Cutting width, max | 122 cm |
Cutting height min | 38.1 mm |
Cutting height max | 101.6 mm |
Blade engagement | Automatic |
| Engine | With Side Discharge Deck SKU: 967 03 20‑01 |
|---|---|
Power/fuel type | Petrol |
Net power at preset rpm Energy | 12.6 kW |
Engine brand | Briggs & Stratton |
Motor/engine manufacturer | Briggs & Stratton |
Engine name | 800 Series |
Cylinder displacement | 656 cm³ |
Cylinders | 2 |
Engine cooling | Air |
Engine lubrication type | Full pressure |
Oil filter | Yes |
| Dimensions | With Side Discharge Deck SKU: 967 03 20‑01 |
|---|---|
Tyre dimensions, front | 170/60-8 |
Tyre dimensions, rear | 170/60-8 |
Wheelbase | 88.7 cm |
Ground clearance | 105 mm |
Base machine, length | 190 cm |
Base machine, width | 89 cm |
Base machine, height | 107 cm |
Gross weight towed | 110 kg |
| Vibration | With Side Discharge Deck SKU: 967 03 20‑01 |
|---|---|
Vibration level steering wheel | 2.5 m/s² |
Vibration level seat | 0.7 m/s² |
| Drive system | With Side Discharge Deck SKU: 967 03 20‑01 |
|---|---|
PTO (Power Take Off) | Belt Drive |
Transmission type | Hydrostatic |
Drive method | Dual pedal-operation |
Speed forward max | 9 km/h |
Speed reverse max | 5.6 mph |
Speed reverse max | 9 km/h |
| Battery | With Side Discharge Deck SKU: 967 03 20‑01 |
|---|---|
Battery capacity | 24 Ah |
Battery Chemistry | Lead-Acid |
Battery Weight | 7.2 kg |
Battery brand | Global |
| Equipment | With Side Discharge Deck SKU: 967 03 20‑01 |
|---|---|
Seat suspension | Yes |
Hour meter type | Digital |
Seat material | Vinyl |
Seat back height | Medium |
Foldable seat | Yes |
Steering wheel type | Comfort |
Parking brake, type | Disc |
