Robotic Lawn Mowers
Parts, manuals and support for Automower® 410 iQ
All the support you need for Automower® 410 iQ. Manuals, spare parts, guides, how-to’s, and more.
Currently available
Go to Automower® 410 iQ product pageChoose your SKU
For more product support please choose your SKU below.
Spare parts
Choose the part you wish to repair

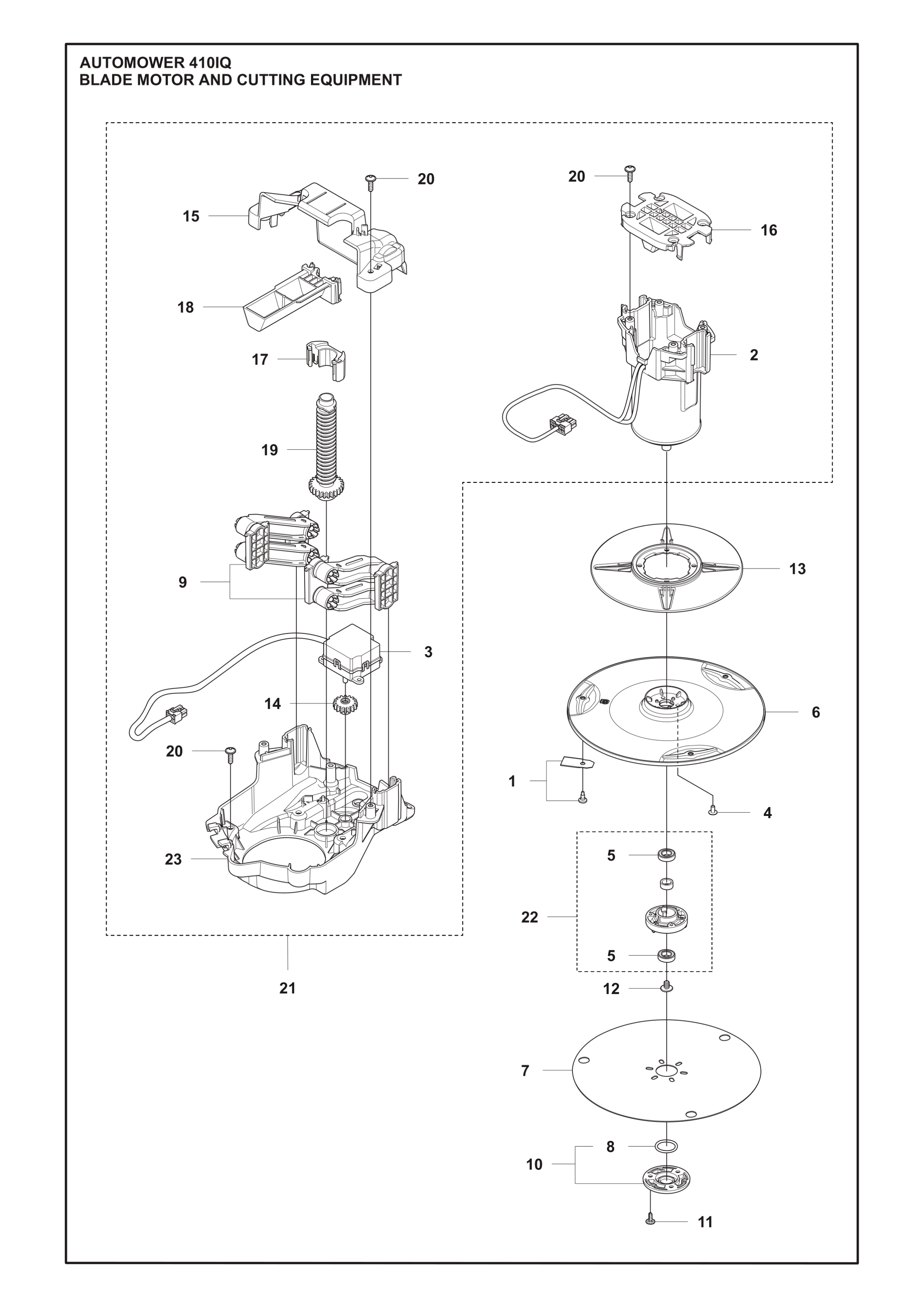

BLADE MOTOR AND CUTTING EQUIPMENT
Name
SKU
Support content
Manuals & Documents
(2)
Manuals & Documents
(2)
Showing the latest version of manual and documents for Automower® 410 iQ. For earlier versions, see link below to search all manuals & documents..
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications
| Cutting System | US, CA SKU: 970 72 74‑01 |
|---|---|
Cutting system | 3 pivoting razor blades |
Cutting width | 24 cm |
Skid plate | Yes |
Dual cutting direction | Yes |
| Capacity | US, CA SKU: 970 72 74‑01 |
|---|---|
Area capacity | 2,000 m² |
Maximum slope performance at boundary | 25 % |
Maximum slope performance inside installation | 45 % |
Max active time | 24 h |
Follow guide | 3 |
| Control | US, CA SKU: 970 72 74‑01 |
|---|---|
User Interface | Jogwheel, display and status LED:s/App |
Display | Color Display TFT 2,8” QVGA |
Smart Home integration | Yes |
Firmware Update | FOTA |
| Product data | US, CA SKU: 970 72 74‑01 |
|---|---|
Sound level perceived | 62 dB(A) |
Protection Index (IP Code) | IPX5 |
Typical mow time on one charge | 84 min |
Mean energy consumption per month at maximum use | 4.76 kWh |
| Overall dimensions | US, CA SKU: 970 72 74‑01 |
|---|---|
Weight (complete product w/o side packed articles) | 19.05 kg |
Product size length | 75 cm |
Product size width | 54 cm |
Product size height | 28 cm |
| Safety | US, CA SKU: 970 72 74‑01 |
|---|---|
GPS Theft tracking | Yes |
PIN code | Yes |
Lift sensor | Yes |
Tilt sensor | Yes |
