Chainsaws
Parts, manuals and support for 542i XP® G
All the support you need for 542i XP® G. Manuals, spare parts, guides, how-to’s, and more.
Currently available
Go to 542i XP® G product pageChoose your SKU
For more product support please choose your SKU below.
Spare parts
Choose the part you wish to repair

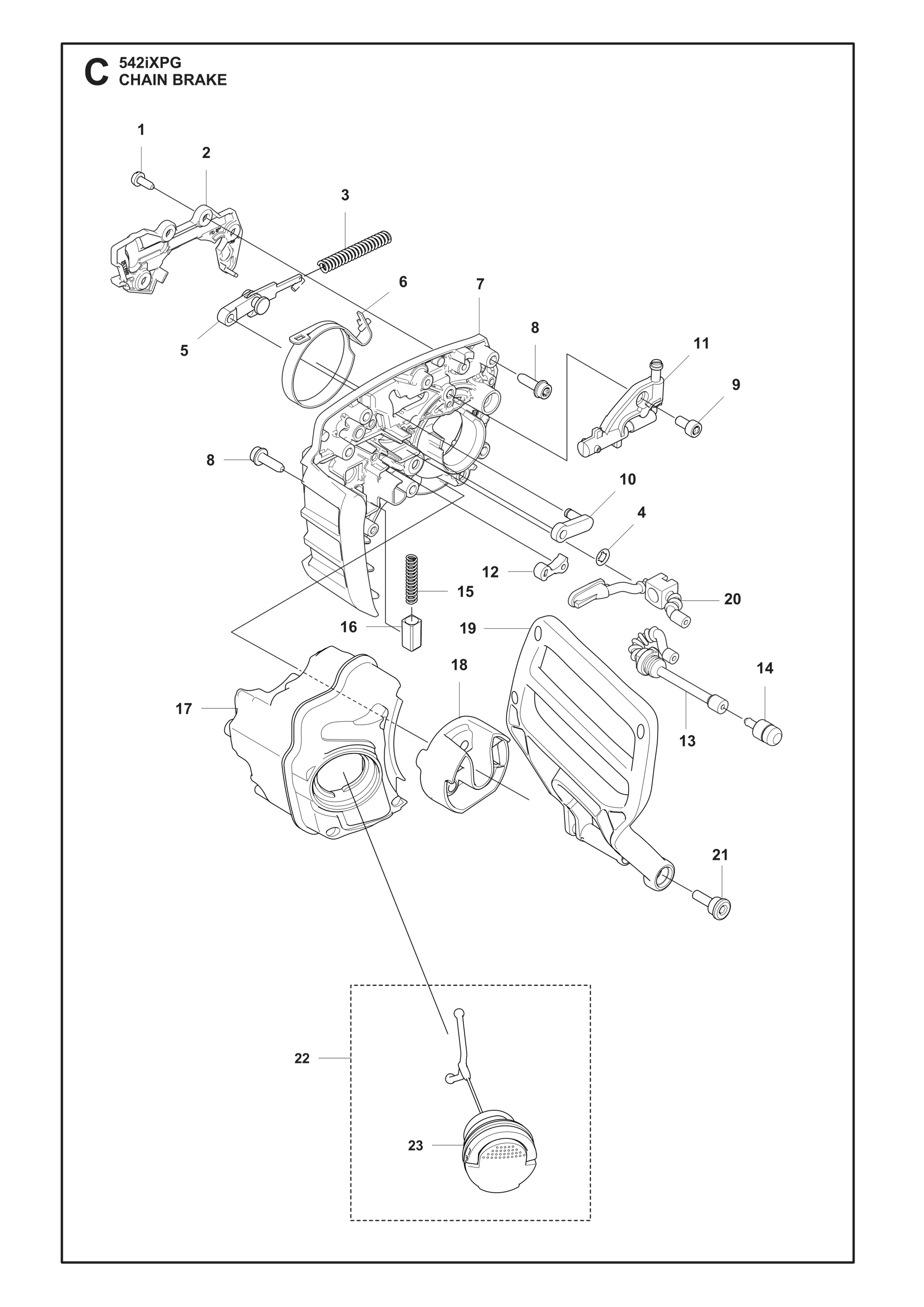

CHAIN BRAKE
Name
SKU
Support content
Manuals & Documents
(5)
Manuals & Documents
(5)
Showing the latest version of manual and documents for 542i XP® G. For earlier versions, see link below to search all manuals & documents..
Illustrated Part List
Published: 2025-05-21240 kB,FROperator's Manual
Published: 2025-04-294.81 MB,EN, FR, ES
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications
| Engine | Rearhandle No battery / No Charger, Bluetooth SKU: 970 64 71‑14 |
|---|---|
Chain speed at max power | 24 m/s |
Output shaft power | 1.8 kW |
Battery voltage | 36 V |
Battery Chemistry | Li-Ion |
| Dimensions | Rearhandle No battery / No Charger, Bluetooth SKU: 970 64 71‑14 |
|---|---|
Weight (excl. battery and cutting equipment) | 3.3 kg |
| Equipment | Rearhandle No battery / No Charger, Bluetooth SKU: 970 64 71‑14 |
|---|---|
Recommended bar length, min | 30 cm |
Recommended bar length, max | 40 cm |
Pitch | .325" mini |
Chain type | SP21G |
Battery | Not included |
Bar length | 35 cm |
Bar length (inch) | 14 in |
| Vibration | Rearhandle No battery / No Charger, Bluetooth SKU: 970 64 71‑14 |
|---|---|
Equivalent vibration level (ahv, eq) front handle | 4.3 m/s² |
Equivalent vibration level (ahv, eq) rear handle | 4.8 m/s² |
| Sound and noise | Rearhandle No battery / No Charger, Bluetooth SKU: 970 64 71‑14 |
|---|---|
Sound pressure level at operators ear (LpA) | 91 dB(A) |
Sound power level, guaranteed (LWA) | 104 dB(A) |
