Hedge Trimmers

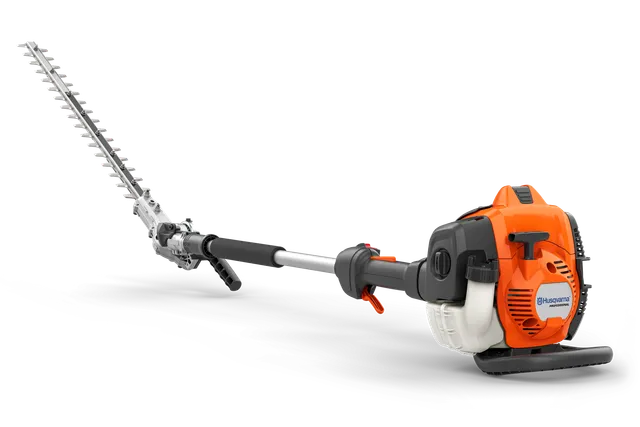

Parts, manuals and support for 525HE3
All the support you need for 525HE3. Manuals, spare parts, guides, how-to’s, and more.
Currently available
Go to 525HE3 product pageChoose your SKU
For more product support please choose your SKU below.
Spare parts
Choose the part you wish to repair
GEAR HOUSING
Name
SKU
Support content
Manuals & Documents
(3)
Manuals & Documents
(3)
Showing the latest version of manual and documents for 525HE3. For earlier versions, see link below to search all manuals & documents..
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications
| Engine | All excl. CN SKU: 967 94 49‑01 |
|---|---|
Cylinder displacement | 25.4 cm³ |
Output shaft power | 1 kW |
Fuel Consumption | 600 g/kWh |
Fuel tank volume | 0.5 l |
Maximum power speed | 8,500 rpm |
| Dimensions | All excl. CN SKU: 967 94 49‑01 |
|---|---|
Length, transportation mode - metric | 126.6 cm |
Weight (complete product w/o side packed articles) | 5.9 kg |
| Equipment | All excl. CN SKU: 967 94 49‑01 |
|---|---|
Knife length | 60 cm |
Teeth opening | 30 mm |
| Emission | All excl. CN SKU: 967 94 49‑01 |
|---|---|
Exhaust emissions (CO₂ EU V) | 1,141 g/kWh |
| Vibration | All excl. CN SKU: 967 94 49‑01 |
|---|---|
Equivalent vibration level (ahv, eq) rear handle | 4.4 m/s² |
Equivalent vibration level (ahv, eq) front handle | 5.6 m/s² |
| Sound and noise | All excl. CN SKU: 967 94 49‑01 |
|---|---|
Sound power level, guaranteed (LWA) | 107 dB(A) |
Sound pressure level at operators ear (LpA) | 96 dB(A) |
| Capacity | All excl. CN SKU: 967 94 49‑01 |
|---|---|
Cutting speed | 4,400 cut/min |
| Control | All excl. CN SKU: 967 94 49‑01 |
|---|---|
Connectivity | Not applicable |
