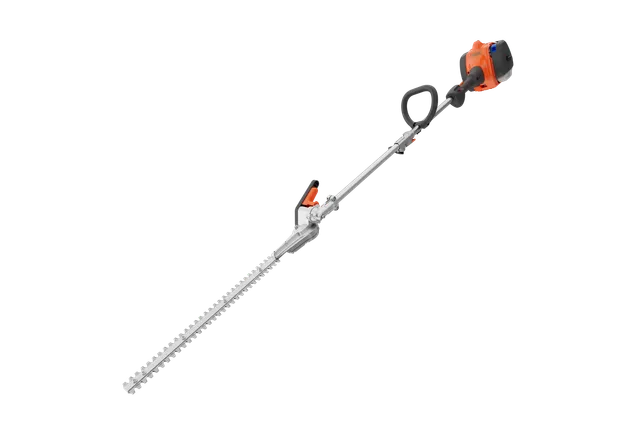

Side view of a hedge trimmer with a long blade and ergonomic handle.

Hedge Trimmers

Parts, manuals and support for 122LKH

All the support you need for 122LKH. Manuals, spare parts, guides, how-to’s, and more.

Currently available
Go to 122LKH product page
Choose your SKU
For more product support please choose your SKU below.

Spare parts

Choose the part you wish to repair

CRANKSHAFT
Choose your preferred view type for the spare parts
Skip drawning
CRANKSHAFTipl-areaipl-areaipl-areaipl-areaipl-areaipl-area
Name
SKU






Support content

Manuals & Documents

(3)
Showing the latest version of manual and documents for 122LKH. For earlier versions, see link below to search all manuals & documents..
See all manuals & documents

Warranty

All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.

Warranty policy
Warranty service

Check your warranty

Login or create an account on MyPages to check your warranty period.
MyPages

Is your product broken?

If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer

General questions

You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna

Specifications

US49, CA
970 79 61‑01
Engine

Cylinder displacement

1.32 cu.inch

Power output

0.8 hp

Fuel Consumption

630 g/kWh

Fuel tank volume

10.14 fl oz (US)

Maximum power speed

7,800 rpm
US49, CA
970 79 61‑01
Dimensions

Product size length

89.72 in

Weight

14.96 lbs
US49, CA
970 79 61‑01
Equipment

Knife length

21.075 in

Teeth opening

0.803 in
US49, CA
970 79 61‑01
Emission

Exhaust emissions (CO₂ EU V)

1,528 g/kWh
US49, CA
970 79 61‑01
Vibration

Equivalent vibration level (ahv, eq) rear handle

3.93 m/s²

Equivalent vibration level (ahv, eq) front handle

6.77 m/s²
US49, CA
970 79 61‑01
Sound and noise

Sound power level, guaranteed (LWA)

0 dB(A)

Sound pressure level at operators ear (LpA)

89.6 dB(A)
US49, CA
970 79 61‑01
Capacity

Cutting speed

2,270 cut/min
US49, CA
970 79 61‑01
Control

Connectivity

Not applicable
