Product Description

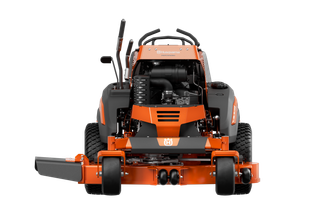

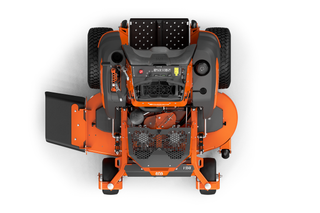

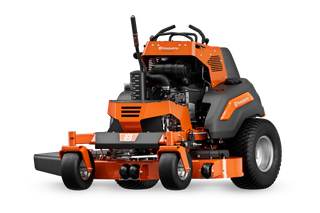

The Husqvarna V500 series stand-on mower represents maximum efficiency in commercial mowing. Providing zero turn capability, rapid mount-dismount, unbeatable maneuvering and ergonomic operation, operators have the best of zero turn and commercial walk behind combined. Heavy duty construction combined with industrial strength drive systems deliver maximum durability in any commercial application.
Product Information
Features
(9)
Features
(9)
Specifications
Specifications
Compare specifications and features with similar Husqvarna products.
Compare| Cutting System | V554X Professional Zero Turn Mower SKU: 970 73 50‑01 |
|---|---|
Cutting width | 137 cm |
Cutting deck type | Fabricated |
Cutting methods | Collect/Mulch/Side discharge |
Cutting deck material | Steel |
Deck thickness | 4.5 mm |
Cutting height steps | 14 |
Blade engagement | Electromagnetic clutch |
Blade-tip speed | 94 m/s |
Blades | 3 pcs |
Anti-scalp wheels | 3 |
Nose roller | No |
Deck lifting system | Manual, foot activated |
Cutting deck surface treatment | Powder coated |
Spindle/mandrel type | Aluminium, commercial |
Greasable mandrels | Yes |
Deck Wash Port | No |
| Approval | V554X Professional Zero Turn Mower SKU: 970 73 50‑01 |
|---|---|
Homeowner Warranty | 5 Years or 1500 Hours |
Commercial Warranty | 5 Years or 1500 Hours |
| Capacity | V554X Professional Zero Turn Mower SKU: 970 73 50‑01 |
|---|---|
Productivity | 17,401.5 m²/h |
Speed forward max | 16.1 km/h |
Speed forward min | 0 km/h |
| Dimensions | V554X Professional Zero Turn Mower SKU: 970 73 50‑01 |
|---|---|
Base machine, height | 122 cm |
Base machine, length | 145 cm |
Base machine, width (chute down) | 172.7 cm |
Base machine, width (chute up) | 139.7 cm |
Weight (complete product w/o side packed articles) | 533.4 kg |
| Drive system | V554X Professional Zero Turn Mower SKU: 970 73 50‑01 |
|---|---|
Transmission type | Pump/Wheel motor |
Transmission manufacturer | Hydro-Gear/Parker |
Transmission model | HP1/DL |
Pump displacement | 12 cm³ |
Fan-cooled pumps | Yes |
| Engine | V554X Professional Zero Turn Mower SKU: 970 73 50‑01 |
|---|---|
Engine brand | Kawasaki |
Motor/engine manufacturer | Kawasaki |
Engine name | FX Series V-Twin |
Cylinder displacement | 852 cm³ |
Cylinders | 2 |
Engine cooling | Air |
Air filter type | Heavy-Duty Canister Style |
Power/fuel type | Gasoline |
Engine lubrication type | Full pressure with oil filter |
Oil filter | Yes |
Fuel tank volume | 26.5 l |
Fuel tank location | Side (Single) |
| Equipment | V554X Professional Zero Turn Mower SKU: 970 73 50‑01 |
|---|---|
Seat material | Vinyl |
Seat back height | Low |
Hour meter type | Yes |
Cup holder | Yes |
Seat type | Professional |
