1/4
Product Description

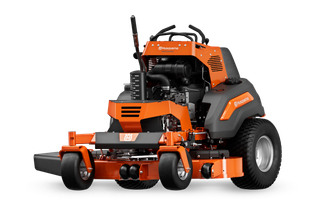

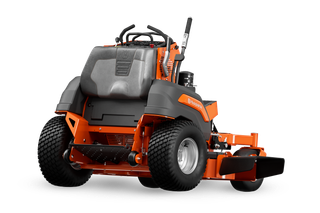

The Husqvarna V500 series stand-on mower represents maximum efficiency in commercial mowing. Providing zero turn capability, rapid mount-dismount, unbeatable maneuvering and ergonomic operation, operators have the best of zero turn and commercial walk behind combined. Heavy duty construction combined with industrial strength drive systems deliver maximum durability in any commercial application.
Product Information
Features
(9)
Features
(9)
Specifications
Specifications
Compare specifications and features with similar Husqvarna products.
CompareV548X Professional Zero Turn Mower 970 73 39‑01 | |
|---|---|
Cutting System | |
Cutting width | 48 in |
Cutting deck type | 7-gauge fabricated |
Cutting methods | Collect/Mulch/Side discharge |
Cutting deck material | Steel |
Deck thickness | 7 gauge |
Cutting height steps | 14 |
Blade engagement | Electric clutch |
Blade-tip speed | 18,500 fpm |
Blade-tip speed | 94 m/s |
Blades | 3 pcs |
Anti-scalp wheels | 3 |
Nose roller | No |
Deck lifting system | Manual, foot activated |
Cutting deck surface treatment | Powder coated |
Spindle/mandrel type | Aluminium, commercial |
Greasable mandrels | Yes |
Deck Wash Port | No |
V548X Professional Zero Turn Mower 970 73 39‑01 | |
|---|---|
Approval | |
Homeowner Warranty | 5 Years or 1500 Hours |
Commercial Warranty | 5 Years or 1500 Hours |
V548X Professional Zero Turn Mower 970 73 39‑01 | |
|---|---|
Capacity | |
Productivity | 3.7 acres/hr |
Speed forward max | 10 mph |
Speed forward min | 0 mph |
V548X Professional Zero Turn Mower 970 73 39‑01 | |
|---|---|
Dimensions | |
Base machine, height | 48 in |
Base machine, length | 57 in |
Base machine, width (chute down) | 62 in |
Base machine, width (chute up) | 50 in |
Weight | 1,140 lbs |
V548X Professional Zero Turn Mower 970 73 39‑01 | |
|---|---|
Drive system | |
Transmission type | Pump/Wheel motor |
Transmission Brand | Hydro-Gear/Parker |
Transmission model | HP1/DL |
Pump displacement | 12 cm³ |
Fan-cooled pumps | Yes |
V548X Professional Zero Turn Mower 970 73 39‑01 | |
|---|---|
Engine | |
Engine brand | Kawasaki |
Motor/engine manufacturer | Kawasaki |
Engine Power (As rated by the engine manufacturer) | 24.5 hp |
Engine name | FX Series V-Twin |
Cylinder displacement | 52 cu.inch |
Cylinders | 2 |
Engine cooling | Air |
Air filter type | Heavy-Duty Canister Style |
Power/fuel type | Gasoline |
Engine lubrication type | Full pressure with oil filter |
Oil filter | Yes |
Fuel tank volume | 7 gal (US) |
Fuel tank location | Side (Single) |
V548X Professional Zero Turn Mower 970 73 39‑01 | |
|---|---|
Equipment | |
Seat material | Vinyl |
Seat back height | Low |
Hour meter type | Yes |
Cup holder | Yes |
Seat type | Professional |
