Forestry Clearing Saws

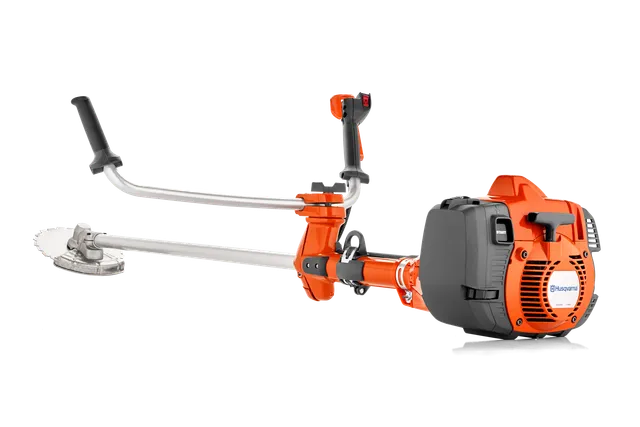

Parts, manuals and support for 545FX AutoTune
All the support you need for 545FX AutoTune. Manuals, spare parts, guides, how-to’s, and more.
Currently available
Go to 545FX AutoTune product pageChoose article number
To show you the right support, choose an article number from this list.
Spare parts
Choose the part you wish to repair
CYLINDER COVER
Article
Art. number
Support content
Manuals & Documents
(9)
Manuals & Documents
(9)
Showing the latest version of manual and documents for 545FX AutoTune. For earlier versions, see link below to search all manuals & documents..
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications
| Engine | AutoTune, Balance XT, All ex US 50, Saw blade 225-24T-1", Scarlett Art no: 967 17 65‑01 |
|---|---|
Output shaft power | 2,2 kW |
Cylinder displacement | 45,7 cm³ |
Fuel tank volume | 1 l |
Fuel Consumption | 450 g/kWh |
Maximum power speed | 9 000 rpm |
Idling speed | 2 700 rpm |
Maximum rpm output shaft | 9 700 rpm |
| Dimensions | AutoTune, Balance XT, All ex US 50, Saw blade 225-24T-1", Scarlett Art no: 967 17 65‑01 |
|---|---|
Weight (excl. cutting equipment) | 8,2 kg |
Tube diameter | 32 mm |
| Emission | AutoTune, Balance XT, All ex US 50, Saw blade 225-24T-1", Scarlett Art no: 967 17 65‑01 |
|---|---|
Exhaust emissions (CO₂ EU V) | 856 g/kWh |
| Equipment | AutoTune, Balance XT, All ex US 50, Saw blade 225-24T-1", Scarlett Art no: 967 17 65‑01 |
|---|---|
Saw blade | Scarlett 225-24 |
Harness | Balance XT |
| Transmission | AutoTune, Balance XT, All ex US 50, Saw blade 225-24T-1", Scarlett Art no: 967 17 65‑01 |
|---|---|
Gear ratio | 1,29 |
Drive gear angle | 24 ° |
| Sound and noise | AutoTune, Balance XT, All ex US 50, Saw blade 225-24T-1", Scarlett Art no: 967 17 65‑01 |
|---|---|
Sound power level, guaranteed (LWA) | 116 dB(A) |
Sound pressure level at operators ear (LpA) | 99 dB(A) |
| Vibration | AutoTune, Balance XT, All ex US 50, Saw blade 225-24T-1", Scarlett Art no: 967 17 65‑01 |
|---|---|
Equivalent vibration level (ahv, eq) left handle | 2,9 m/s² |
Equivalent vibration level (ahv, eq) right handle | 3,3 m/s² |
| Control | AutoTune, Balance XT, All ex US 50, Saw blade 225-24T-1", Scarlett Art no: 967 17 65‑01 |
|---|---|
Connectivity | Corded |
