525RS Mark II, Brushcutter, Petrol, 4-tooth grass blade

Brushcutters

Parts, manuals and support for 525RS Mark II

All the support you need for 525RS Mark II. Manuals, spare parts, guides, how-to’s, and more.

Currently available
Go to 525RS Mark II product page
Choose article number
To show you the right support, choose an article number from this list.
Where to find my article number

Spare parts

Choose the part you wish to repair

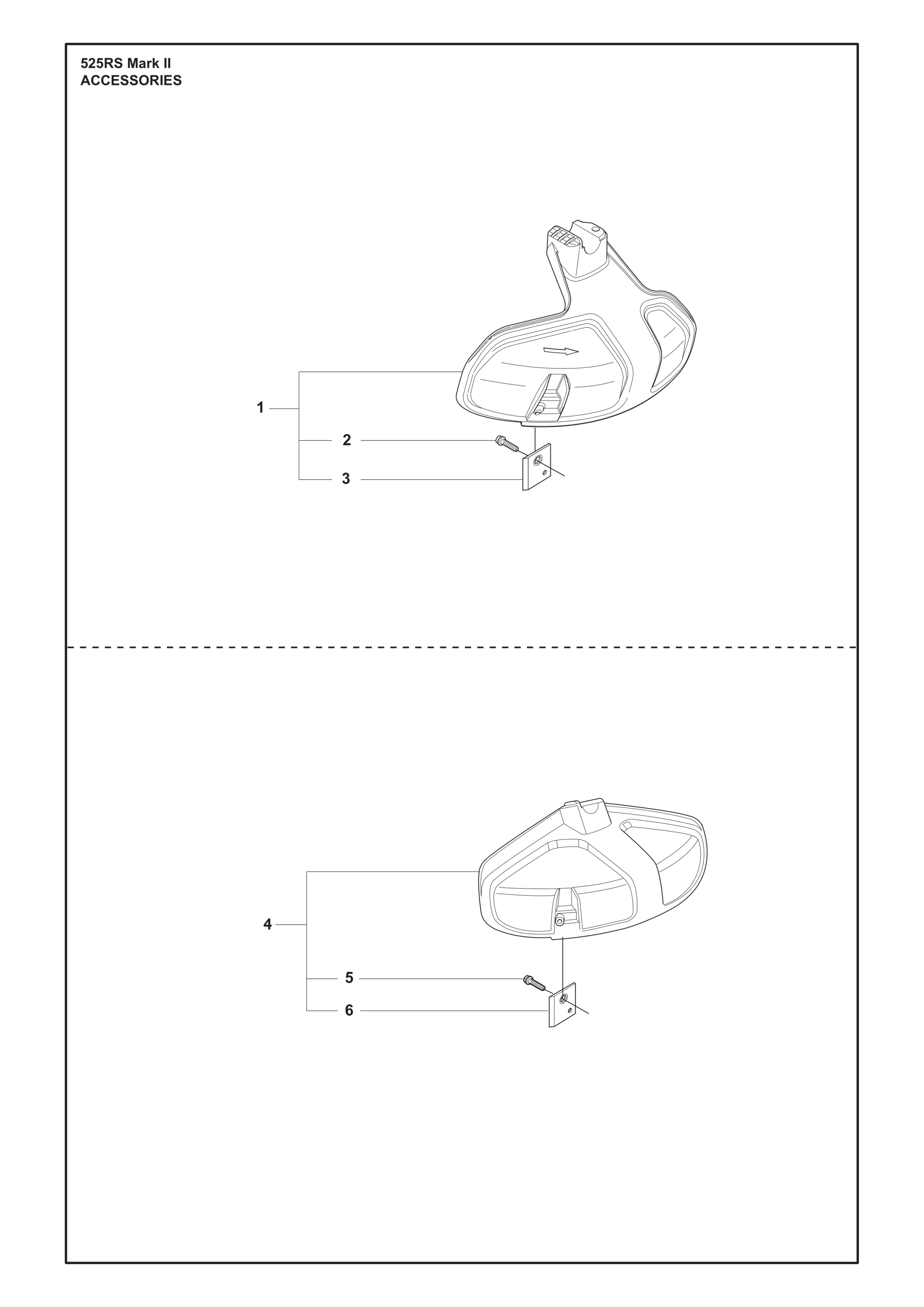

ACCESSORIES
Choose your preferred view type for the spare parts
Skip drawning
ACCESSORIESipl-areaipl-areaipl-areaipl-areaipl-areaipl-area
Article
Art. number






Support content

Manuals & Documents

(1)
Showing the latest version of manual and documents for 525RS Mark II. For earlier versions, see link below to search all manuals & documents..
See all manuals & documents

Troubleshooting & help

(10)
Articles about Brushcutters.
Show all articles

Warranty

All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.

Warranty policy
Warranty service

Check your warranty

Login or create an account on MyPages to check your warranty period.
MyPages

Is your product broken?

If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer

General questions

You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna

Specifications

AU/NZ/Asia, T35X+Grass 255-4
970 84 05‑01
Engine

Cylinder displacement

25.4 cm³

Output shaft power

1 kW

Fuel tank volume

0.66 l

Maximum power speed

8,500 rpm

Idling speed

3,000 rpm

Maximum rpm output shaft

6,500 rpm

Electrode gap

0.55 mm

Clutch engagement speed (±120)

4,000 rpm

Torque, max.

1.2 Nm

Torque, max. at rpm

6,000 rpm

Spark Plug

Husqvarna HQT-2
AU/NZ/Asia, T35X+Grass 255-4
970 84 05‑01
Capacity

Cutting width

45 cm
AU/NZ/Asia, T35X+Grass 255-4
970 84 05‑01
Equipment

Grass blade

Grass 255-4

Harness

Balance 35

Saw blade

Not included

Trimmer head

T35X M10

Handle type

Ergonomic
AU/NZ/Asia, T35X+Grass 255-4
970 84 05‑01
Dimensions

Tube diameter

24 mm

Weight (excl. cutting equipment)

5.3 kg

Tube length

1,500 mm
AU/NZ/Asia, T35X+Grass 255-4
970 84 05‑01
Lubricant

Lubricant type (Engine)

Husqvarna 2 stroke or equiv. at 50:1

Lubricant type (bevel gear)

Mineral grease
AU/NZ/Asia, T35X+Grass 255-4
970 84 05‑01
Emission

Exhaust emissions (CO₂ EU V)

1,350 g/kWh

Exhaust emissions (HC average) EU

31 g/kWh

Exhaust emissions (CO average) EU

41 g/kWh

Exhaust emissions (CO average) EPA

281.1 g/kWh

Exhaust emissions (NOx average) EU

2.7 g/kWh

Exhaust emissions (NOx average) EPA

0.2 g/kWh
AU/NZ/Asia, T35X+Grass 255-4
970 84 05‑01
Transmission

Gear ratio

19

Drive gear angle

30 °
AU/NZ/Asia, T35X+Grass 255-4
970 84 05‑01
Vibration

Equivalent vibration level (ahv, eq) left handle

3.6 m/s²

Equivalent vibration level (ahv, eq) right handle

2.4 m/s²
AU/NZ/Asia, T35X+Grass 255-4
970 84 05‑01
Sound and noise

Sound pressure level at operators ear (LpA)

98 dB(A)

Sound power level, guaranteed (LWA)

114 dB(A)
AU/NZ/Asia, T35X+Grass 255-4
970 84 05‑01
Control

Connectivity

Husqvarna Connectivity Device
