Garden Tractors
Parts, manuals and support for TC 114
All the support you need for TC 114. Manuals, spare parts, guides, how-to’s, and more.
Currently available
Go to TC 114 product pageChoose article number
To show you the right support, choose an article number from this list.
Spare parts
Choose the part you wish to repair

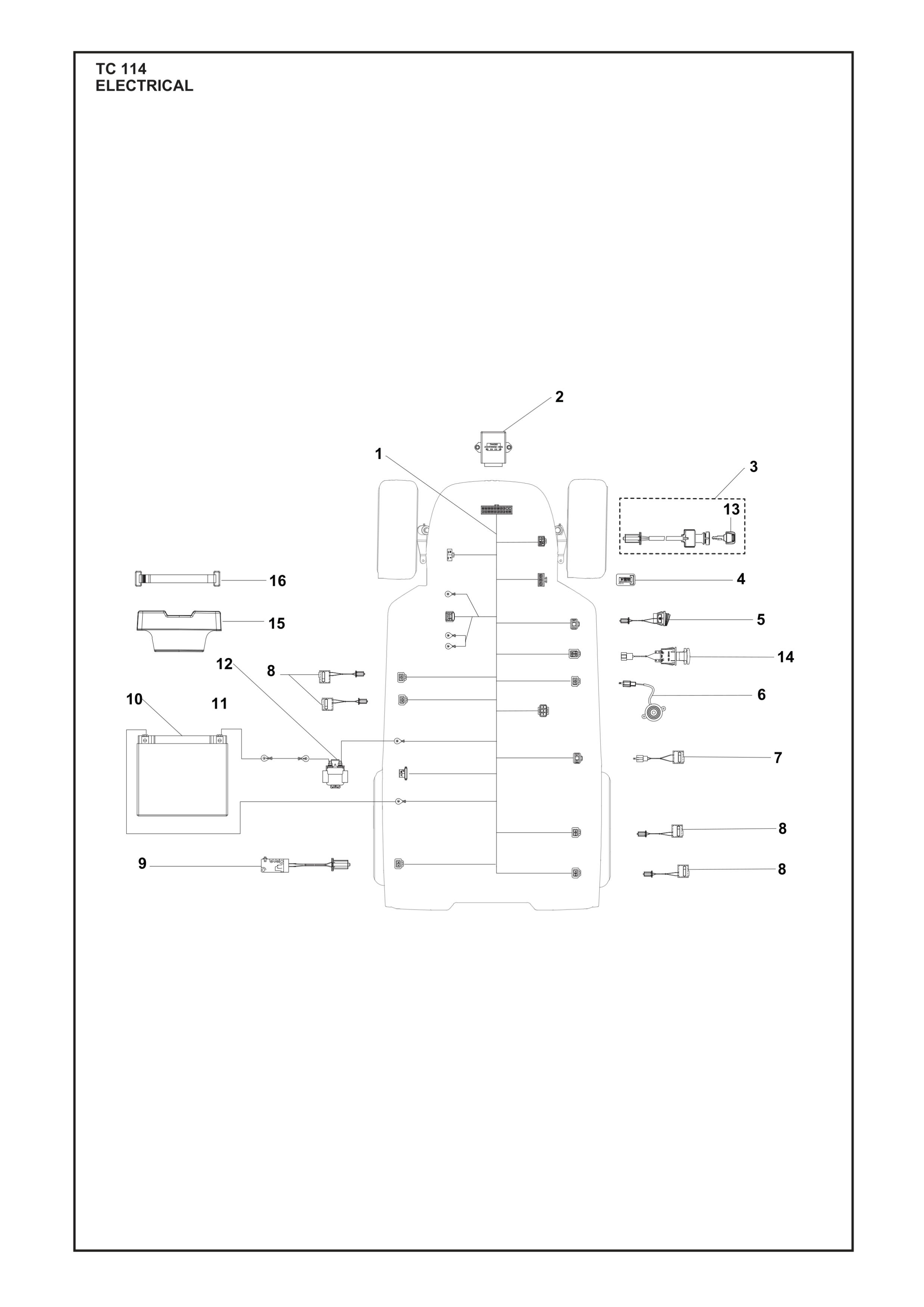

ELECTRICAL
Article
Art. number
Support content
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications
| Engine | TC114 Art no: 970 62 23‑01 |
|---|---|
Cylinder displacement | 452 cm³ |
Engine brand | Husqvarna |
Motor/engine manufacturer | Husqvarna |
Engine name | HS 452AE |
Net power at preset rpm Energy | 9 kW |
Net power at preset rpm | 2 800 rpm |
Cylinders | 1 |
Generator | 12 |
Power/fuel type | Petrol |
Oil filter | Yes |
| Cutting deck | TC114 Art no: 970 62 23‑01 |
|---|---|
Cutting width | 95 cm |
Nose roller | No |
Anti-scalp wheels | 2 |
| Drive system | TC114 Art no: 970 62 23‑01 |
|---|---|
Drive method | Dual pedal-operation |
Speed reverse max | 5 km/h |
| Equipment | TC114 Art no: 970 62 23‑01 |
|---|---|
Seat material | PU |
Front-End Protection | Available as accessory |
Hour meter type | Digital |
Seat back height | Medium |
Steering wheel type | Ergonomic |
Collector | Included |
| Emission | TC114 Art no: 970 62 23‑01 |
|---|---|
Exhaust emissions (CO₂ EU V) | 754 g/kWh |
| Sound and noise | TC114 Art no: 970 62 23‑01 |
|---|---|
Sound power level, guaranteed (LWA) | 97,6 dB(A) |
Sound pressure level at operators ear (LpA) | 83,4 dB(A) |
| Transmission | TC114 Art no: 970 62 23‑01 |
|---|---|
Transmission type | Hydrostatic |
Transmission manufacturer | Hydro-Gear |
