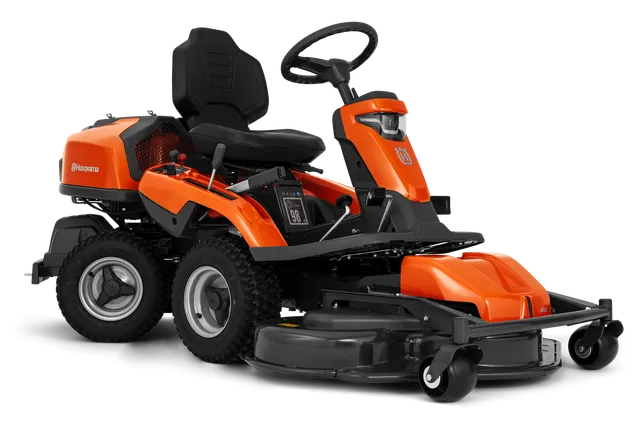

Ride-On Front Mowers
Parts, manuals and support for R 318X
All the support you need for R 318X. Manuals, spare parts, guides, how-to’s, and more.
Currently available
Go to R 318X product pageChoose article number
To show you the right support, choose an article number from this list.
Spare parts
Choose the part you wish to repair
CHASSIS REAR
Article
Art. number
Support content
Manuals & Documents
(2)
Manuals & Documents
(2)
Showing the latest version of manual and documents for R 318X. For earlier versions, see link below to search all manuals & documents..
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications
| Cutting deck | R 318X RIDER Art no: 970 54 25‑01 |
|---|---|
Uncut circle | 30 cm |
Cutting width, min | 94 cm |
Cutting width, max | 112 cm |
Cutting height min | 25 mm |
Cutting height max | 75 mm |
Blade engagement | Automatic |
| Engine | R 318X RIDER Art no: 970 54 25‑01 |
|---|---|
Power/fuel type | Petrol |
Net power at preset rpm Energy | 10,3 kW |
Engine brand | Husqvarna |
Motor/engine manufacturer | Husqvarna |
Engine name | HS 546AE |
Cylinder displacement | 546 cm³ |
Cylinders | 1 |
Engine cooling | Air |
Engine lubrication type | Pressure with Oilfilter |
Oil filter | Yes |
| Dimensions | R 318X RIDER Art no: 970 54 25‑01 |
|---|---|
Tyre dimensions, front | 170/60-8 |
Tyre dimensions, rear | 170/60-8 |
Wheelbase | 88,7 cm |
Ground clearance | 125 mm |
Base machine, length | 202,4 cm |
Base machine, width | 88,3 cm |
Base machine, height | 118,1 cm |
Gross weight towed | 125 kg |
Weight (excl. cutting equipment) | 234 kg |
| Vibration | R 318X RIDER Art no: 970 54 25‑01 |
|---|---|
Vibration level steering wheel | 1,6 m/s² |
Vibration level seat | 0,4 m/s² |
| Drive system | R 318X RIDER Art no: 970 54 25‑01 |
|---|---|
PTO (Power Take Off) | Belt Drive |
Transmission type | Hydrostatic |
Drive method | Dual pedal-operation |
Speed forward max | 9 km/h |
Speed reverse max | 3,7 mph |
Speed reverse max | 6 km/h |
| Battery | R 318X RIDER Art no: 970 54 25‑01 |
|---|---|
Battery capacity | 24 Ah |
Battery Chemistry | Lead-Acid |
Battery Weight | 7,2 kg |
Battery brand | Global |
| Equipment | R 318X RIDER Art no: 970 54 25‑01 |
|---|---|
Seat suspension | Yes |
Seat type | Premium |
Hour meter type | Digital |
Seat material | Vinyl |
Seat back height | High |
Foldable seat | Yes |
Steering wheel type | Ergonomic - soft grip |
Parking brake, type | Disc |
| Sound and noise | R 318X RIDER Art no: 970 54 25‑01 |
|---|---|
Sound pressure level at operators ear (LpA) | 84,4 dB(A) |
Sound power level, guaranteed (LWA) | 99,8 dB(A) |
Sound power level, measured | 99 dB(A) |
| Emission | R 318X RIDER Art no: 970 54 25‑01 |
|---|---|
Exhaust emissions (CO₂ EU V) | 707 g/kWh |
