Chainsaws

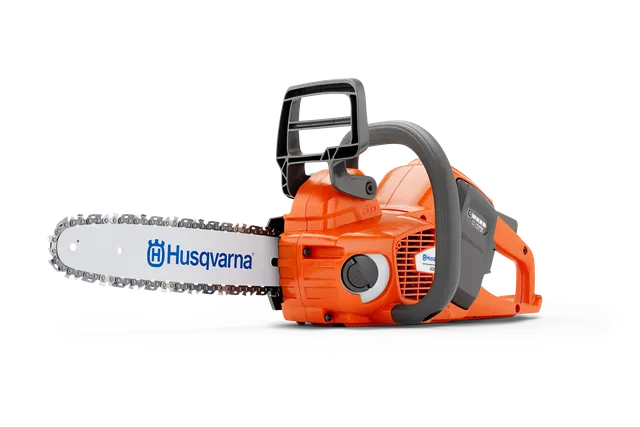

Parts, manuals and support for 436Li
All the support you need for 436Li. Manuals, spare parts, guides, how-to’s, and more.
Discontinued
See all Chainsaws for saleChoose article number
To show you the right support, choose an article number from this list.
Spare parts
Choose the part you wish to repair
CRANKCASE
Article
Art. number
Support content
Manuals & Documents
(5)
Manuals & Documents
(5)
Showing the latest version of manual and documents for 436Li. For earlier versions, see link below to search all manuals & documents..
Illustrated Part List
Published: 2021/11/2624.7 kB,ENOperator's Manual
Published: 2018/03/014.24 MB,EN
Accessories
(16)
Accessories
(16)
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications
| Engine | All excl US, CAN, UK, IE - 12" + 1 battery (4,2 Ah) + 1 charger QC330 Art no: 966 72 90‑42 |
|---|---|
Chain speed at max power | 15 m/s |
Output shaft power | 1,1 kW |
Battery voltage | 36 V |
Battery Chemistry | Li-Ion |
| Dimensions | All excl US, CAN, UK, IE - 12" + 1 battery (4,2 Ah) + 1 charger QC330 Art no: 966 72 90‑42 |
|---|---|
Weight (excl. battery and cutting equipment) | 2,7 kg |
| Equipment | All excl US, CAN, UK, IE - 12" + 1 battery (4,2 Ah) + 1 charger QC330 Art no: 966 72 90‑42 |
|---|---|
Recommended bar length, min | 25 cm |
Recommended bar length, max | 35 cm |
Pitch | 1/4", 3/8" |
Battery | BLi150, 36V / 4,2Ah |
Bar length | 30 cm |
Bar length (inch) | 12 in |
| Vibration | All excl US, CAN, UK, IE - 12" + 1 battery (4,2 Ah) + 1 charger QC330 Art no: 966 72 90‑42 |
|---|---|
Equivalent vibration level (ahv, eq) front handle | 2,2 m/s² |
Equivalent vibration level (ahv, eq) rear handle | 2,4 m/s² |
| Sound and noise | All excl US, CAN, UK, IE - 12" + 1 battery (4,2 Ah) + 1 charger QC330 Art no: 966 72 90‑42 |
|---|---|
Sound pressure level at operators ear (LpA) | 93 dB(A) |
Sound power level, guaranteed (LWA) | 106 dB(A) |
