1/13
48,000 m²
対応エリア
仮想ワイヤー
Boundary type
Husqvarna Fleet Services

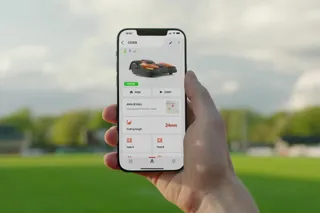

アプリ制御
内容
内容
Husqvarna CEORA® 546 EPOS® / RZ 43L / CS4 - 970 75 00‑01
こちらの商品が含まれます
- ドライブユニットYes
- カッティングデッキCEORA™ RZ 43L
- チャージステーションYes
- 追加ブレード45 個
- ホイールブラシYes
- 電源ユニットYes
こちらの商品は含まれません
- リファレンスステーション
- Support plate
CEORA® configuration with maximized area capacity
A peak-performance robotic model for large-area mowing, featuring Husqvarna EPOS® technology. Systematic, high-precision cutting tailored for optimized flexibility within virtual boundaries. Handles very large areas such as multiple football fields, golf courses or large hotel, company or municipal facilities. Delivering a professional result on the turf, operating quietly and with zero emissions while in use.
This CEORA® configuration is equipped with the drive unit, CEORA® 546 EPOS®, the tailored-made cutting deck, RZ 43L, and the charging station, CS4.
EPOS® RS5 Reference station sold separately.
This CEORA® configuration is equipped with the drive unit, CEORA® 546 EPOS®, the tailored-made cutting deck, RZ 43L, and the charging station, CS4.
EPOS® RS5 Reference station sold separately.
特長
特長
仕様
仕様
類似のハスクバーナ製品と比較
比較Fictive system for web NOT FOR SALE 970 75 00‑01 | |
|---|---|
容量 | |
対応エリア | 48,000 m² |
Boundary type | 仮想ワイヤー |
境界ワイヤー敷設可能最大傾斜 | 15 % |
作業エリア内の最大許容傾斜角 | 20 % |
ガイドワイヤー本数 | Virtual transport path |
充電システム | 自動 |
Fictive system for web NOT FOR SALE 970 75 00‑01 | |
|---|---|
全体寸法 | |
本体乾燥質量 | 75 kg |
全長 | 124 cm |
全幅 | 108 cm |
全高 | 44 cm |
Fictive system for web NOT FOR SALE 970 75 00‑01 | |
|---|---|
製品データ | |
カラーコード | オレンジ |
Sound level perceived | 72 dB(A) |
防水規格 | IPX5 |
バッテリー種類 | Li-Ion リチウムイオン |
バッテリー容量 | 49 Ah |
充電電流 | 12 |
充電1回当たりの標準運転時間 | 200 分 |
標準充電時間 | 150 分 |
最大使用時の 1 ヶ月あたりの平均エネルギー消費量 | 150 kWh |
対応エリア - 標準 48 | 48,000 m² |
対応エリア - スポーツ 24 | 24,000 m² |
充電しない場合の 1 時間あたりの対応エリア | 1,800 m² |
Fictive system for web NOT FOR SALE 970 75 00‑01 | |
|---|---|
カッティングシステム | |
カッティングシステム | 回転式ブレード 5 個付きディスク(3 枚) |
刈高 (最高) max | 60 mm |
刈高 (最低) min | 10 mm |
刈幅 | 68 cm |
カッティング高調節 | Electric |
Skid plate | Yes |
Fictive system for web NOT FOR SALE 970 75 00‑01 | |
|---|---|
コントロール | |
キーパッド | Professional User Interface/App |
情報パネル | None |
データ接続 | Cellular, Bluetooth® |
アプリ制御 | Husqvarna Fleet Services |
ファームウェアの更新 | FOTA |
Fictive system for web NOT FOR SALE 970 75 00‑01 | |
|---|---|
安全性 | |
GPS Theft tracking | Yes |
ジオフェンス | Yes |
PIN コード | Yes |
アラーム | あり |
リフトセンサー | Yes |
傾斜センサー | Yes |
Object detection | 超音波 |
アクセサリー
(4)
アクセサリー
(4)
Here are suitable accessories for CEORA® 546 EPOS® / RZ 43L / CS4. Looking for spare parts?
See all spare parts for CEORA® 546 EPOS® / RZ 43L / CS4オーナーサポート
オーナーサポート
CEORA® 546 EPOS® / RZ 43L / CS4 の取扱説明書、ハンドブック、スペアパーツ、ガイド、および関連情報は、製品サポートにあります。
CEORA® 546 EPOS® / RZ 43L / CS4 の製品サポート
