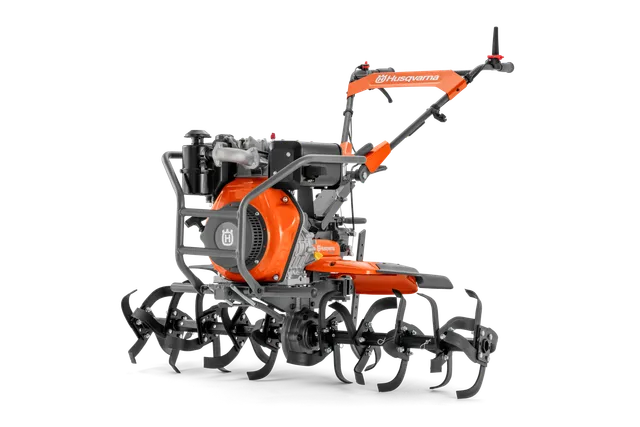

Parts, manuals and support for TF 545D
All the support you need for TF 545D. Manuals, spare parts, guides, how-to’s, and more.
Discontinued
See all Tillers for saleChoose article number
To show you the right support, choose an article number from this list.
Spare parts
Choose the part you wish to repair
PISTON AND CRANKSHAFT
Article
Art. number
Support content
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications
| Engine | TF545D DIESEL TILLER Art no: 967 63 94‑01 |
|---|---|
Net power at preset rpm Energy | 6,6 kW |
Air filter type | Oil bath |
Fuel tank volume | 4,6 l |
Power/fuel type | Diesel |
Cylinder displacement | 418 cm³ |
| Capacity | TF545D DIESEL TILLER Art no: 967 63 94‑01 |
|---|---|
Working width | 135 cm |
Working depth | 30 cm |
Tine diameter | 360 mm |
Number of tines | 10 |
Rotational speed (min/max) min | 62 rpm |
Rotational speed (min/max) max | 145 rpm |
Cultivator type | Front-tine |
| Equipment | TF545D DIESEL TILLER Art no: 967 63 94‑01 |
|---|---|
Rubber wheels | Included |
Foldable handlebar | Yes |
Horizontally adjustable handlebar | Yes |
Vertically adjustable handlebar | Yes |
| Transmission | TF545D DIESEL TILLER Art no: 967 63 94‑01 |
|---|---|
Transmission type | Direct Clutch |
Transmission steps reverse | 2 |
Transmission steps forward | 4 |
| Dimensions | TF545D DIESEL TILLER Art no: 967 63 94‑01 |
|---|---|
Weight (complete product w/o side packed articles) | 164 kg |
| Electric information | TF545D DIESEL TILLER Art no: 967 63 94‑01 |
|---|---|
Engine name | Husqvarna Engine |
