Power Cutters

Parts, manuals and support for K 770 Rescue

All the support you need for K 770 Rescue. Manuals, spare parts, guides, how-to’s, and more.

Currently available

Choose article number

To show you the right support, choose an article number from this list.

Article number:

Spare parts

Choose the part you wish to repair

ENGINE

Combined viewList view

(6)

All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.

If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer

You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna

Engine - Compare specifications across different product articles

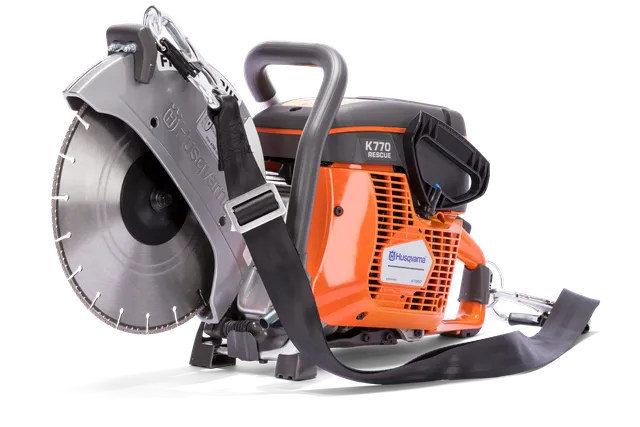

Engine	POWER CUTTER K 770 Rescue Rescue \| 12" \| 0.8" Art no: 967 80 91‑01
Output power	3,7 kW
Cylinder displacement	73,5 cm³
Electrode gap	0,5 mm
Cylinders	1
Number of strokes	2-stroke engine

Cutting System - Compare specifications across different product articles
Cutting System	POWER CUTTER K 770 Rescue Rescue \| 12" \| 0.8" Art no: 967 80 91‑01
Blade diameter, max	300 mm
Arbor diameter	20 mm
Blade thickness, max	5 mm
Peripheral speed, max	80 m/s

Dimensions - Compare specifications across different product articles
Dimensions	POWER CUTTER K 770 Rescue Rescue \| 12" \| 0.8" Art no: 967 80 91‑01
Product size length	618 mm
Product size width	221 mm
Product size height	391 mm
Weight (complete product w/o side packed articles)	10 kg

Cutting deck - Compare specifications across different product articles
Cutting deck	POWER CUTTER K 770 Rescue Rescue \| 12" \| 0.8" Art no: 967 80 91‑01
Cutting depth, max	100 mm

Sound and noise - Compare specifications across different product articles
Sound and noise	POWER CUTTER K 770 Rescue Rescue \| 12" \| 0.8" Art no: 967 80 91‑01
Sound power level, guaranteed (LWA)	115 dB(A)
Sound pressure level at operators ear (LpA)	101 dB(A)

Emission - Compare specifications across different product articles
Emission	POWER CUTTER K 770 Rescue Rescue \| 12" \| 0.8" Art no: 967 80 91‑01
Exhaust emissions (CO₂ EU V)	711 g/kWh

Vibration - Compare specifications across different product articles
Vibration	POWER CUTTER K 770 Rescue Rescue \| 12" \| 0.8" Art no: 967 80 91‑01
Vibrations left/front handle	2,1 m/s²
Vibrations right/rear handle	2,3 m/s²
