What's included
- Cutting deck

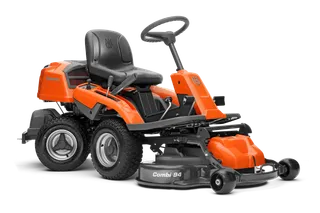

R 216
Features
Features
Specifications
Specifications
R216 RIDER 967 29 11‑02 | |
|---|---|
Engine | |
Power/fuel type | Petrol |
Net power at preset rpm Energy1 | 9.6 kW |
Net power at preset rpm | 2,900 rpm |
Engine brand | Briggs & Stratton |
Motor/engine manufacturer | Briggs & Stratton |
Engine name | Intek |
Cylinder displacement | 500 cm³ |
Cylinders | 1 |
Engine cooling | Air |
Engine lubrication type | Pressure |
Oil filter | Yes |
R216 RIDER 967 29 11‑02 | |
|---|---|
Battery | |
Battery capacity | 24 Ah |
Battery Chemistry | Lead-Acid |
Battery Weight | 7.2 kg |
Battery brand | Global |
R216 RIDER 967 29 11‑02 | |
|---|---|
Cutting deck | |
Uncut circle | 30 cm |
Cutting width, min | 94 cm |
Cutting width, max | 103 cm |
Cutting height min | 25 mm |
Cutting height max | 75 mm |
Blade engagement | Automatic |
R216 RIDER 967 29 11‑02 | |
|---|---|
Dimensions | |
Tyre dimensions, front | 165/60-8 |
Tyre dimensions, rear | 165/60-8 |
Wheelbase | 88.7 cm |
Ground clearance | 105 mm |
Base machine, length | 196 cm |
Base machine, width | 89 cm |
Base machine, height | 112 cm |
Gross weight towed2 | 110 kg |
R216 RIDER 967 29 11‑02 | |
|---|---|
Drive system | |
Transmission type | Hydrostatic |
Drive method | Dual pedal-operation |
Speed forward max | 9 km/h |
Speed reverse max | 9 km/h |
R216 RIDER 967 29 11‑02 | |
|---|---|
Equipment | |
Seat suspension | Yes |
Hour meter type | Digital |
Seat material | PU |
Seat back height | Medium |
Foldable seat | Yes |
Steering wheel type | Comfort |
Parking brake, type | Disc |
R216 RIDER 967 29 11‑02 | |
|---|---|
Vibration | |
Vibration level steering wheel | 2.5 m/s² |
Vibration level seat | 0.7 m/s² |
R216 RIDER 967 29 11‑02 | |
|---|---|
Sound and noise | |
Sound pressure level at operators ear (LpA) | 85 dB(A) |
Sound power level, guaranteed (LWA) | 100 dB(A) |
Sound power level, measured | 99 dB(A) |
Accessories
(1)
Accessories
Here are suitable accessories for R 216. Looking for spare parts?
See all spare parts for R 216Owner support
Owner support
- 1Net power at preset rpm Energy: Net power rating as per SAE J1349, at specified RPM as specified by the engine manufacturer
- 2Gross weight towed: For 2-wheel drive machines, towing of trailer is only allowed in dry conditions and on flat surfaces. Be aware that towing of trailer may shorten the life time of the Rider's transmission.
