1/1
500 cm³
Cylinder displacement
8.4 kW
Net power at preset rpm Energy1
Petrol
Power/fuel type
TS 138

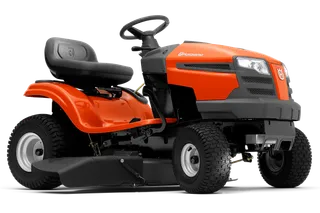

The TS 138 is a user-friendly tractor ideal for homeowners having small to mid-size gardens. It is an efficient tractor with side ejection, smart design and ergonomics. Has a powerful Husqvarna Series engine with choke less start and convenient pedal-operated transmission. Can be complimented with a collector and BioClip® cover.
Features
Features
Specifications
Specifications
Compare specifications and features with similar Husqvarna products.
Compare| Cutting deck | TS 138 TRACTOR Art no: 960 41 04‑21 |
|---|---|
Cutting width | 97 cm |
Cutting height max | 102 mm |
Cutting height min | 38 mm |
Nose roller | No |
Anti-scalp wheels | 0 |
| Drive system | TS 138 TRACTOR Art no: 960 41 04‑21 |
|---|---|
Drive method | Pedal-operated |
Speed forward max | 6.7 km/h |
Speed reverse max | 3.5 km/h |
| Engine | TS 138 TRACTOR Art no: 960 41 04‑21 |
|---|---|
Cylinder displacement | 500 cm³ |
Engine brand | Briggs & Stratton |
Motor/engine manufacturer | Briggs & Stratton |
Engine name | Intek |
Net power at preset rpm Energy1 | 8.4 kW |
Net power at preset rpm | 2,600 rpm |
Cylinders | 1 |
Generator | 3 A, 5 A |
Power/fuel type | Petrol |
Oil filter | Yes |
| Equipment | TS 138 TRACTOR Art no: 960 41 04‑21 |
|---|---|
Seat material | Vinyl |
Seat type | 13" high back |
Front-End Protection | Optional |
Hour meter type | Digital with pre-programmed service intervals |
Seat back height | Medium 13" |
Steering wheel type | Standard |
Collector | Available as accessory |
| Transmission | TS 138 TRACTOR Art no: 960 41 04‑21 |
|---|---|
Transmission type | Hydrostatic |
Transmission manufacturer | Tuff Torq |
| Sound and noise | TS 138 TRACTOR Art no: 960 41 04‑21 |
|---|---|
Sound power level, guaranteed (LWA) | 100 dB(A) |
Sound power level, measured | 99 dB(A) |
Sound pressure level at operators ear (LpA) | 85 dB(A) |
| Emission | TS 138 TRACTOR Art no: 960 41 04‑21 |
|---|---|
Exhaust emissions (CO₂ EU V)2 | 794.21 g/kWh |
| Dimensions | TS 138 TRACTOR Art no: 960 41 04‑21 |
|---|---|
Base machine, height | 88 cm |
Base machine, length | 178 cm |
Base machine, width (chute up) | 102 cm |
Base machine, width (chute down) | 125 cm |
Tyre dimensions, front | 15X6-6 |
Tyre dimensions, rear | 18X8.5-8 |
Owner support
Owner support
Manuals, handbooks, spare parts, guides, and related information for TS 138 can be found in the product support.
Product support for TS 138Disclaimer:
- 1Net power at preset rpm Energy: Net power rating as per SAE J1349, at specified RPM as specified by the engine manufacturer
- 2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
