1/1
764 cm³
Cylinder displacement
17 kW
Net power at preset rpm Energy1
Petrol
Power/fuel type

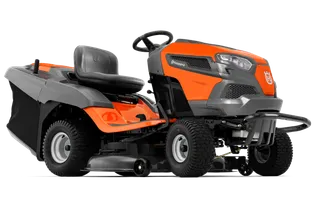

TC 138T
The TC 138T is ideal for homeowners and landowners with medium sized gardens who need a durable and comfortable tractor with high maneuverability. It is an efficient garden tractor that offers excellent collection of grass clippings as well as leaves, giving tidy cutting results. The spacious, integrated collector is easily emptied from the driver’s seat. Equipped with a powerful Husqvarna V-Twin engine, pedal-operated hydrostatic transmission and cast front axle for extra convenient and trouble-free operation.
Features
Features
Specifications
Specifications
Compare specifications and features with similar Husqvarna products.
CompareTC 138T 960 51 01‑98 | |
|---|---|
Cutting deck | |
Cutting width | 97 cm |
Cutting height max | 102 mm |
Cutting height min | 38 mm |
Nose roller | No |
Anti-scalp wheels | 2 |
TC 138T 960 51 01‑98 | |
|---|---|
Drive system | |
Drive method | Pedal-operated |
Speed forward max | 8.4 km/h |
Speed reverse max | 3.5 km/h |
TC 138T 960 51 01‑98 | |
|---|---|
Engine | |
Cylinder displacement | 764 cm³ |
Engine brand | Husqvarna |
Motor/engine manufacturer | Husqvarna |
Engine name | Husqvarna Series |
Net power at preset rpm Energy1 | 17 kW |
Net power at preset rpm | 3,600 rpm |
Cylinders | 2 |
Generator | 15 |
Power/fuel type | Petrol |
Oil filter | Yes |
TC 138T 960 51 01‑98 | |
|---|---|
Equipment | |
Seat material | Vinyl |
Seat type | High back 15" (armrest as accessory) |
Front-End Protection | Tube Bumper |
Hour meter type | Digital with pre-programmed service intervals |
Seat back height | High 15" |
Steering wheel type | Standard |
Collector | Included |
TC 138T 960 51 01‑98 | |
|---|---|
Transmission | |
Transmission type | Hydrostatic |
Transmission Brand | Tuff Torq |
TC 138T 960 51 01‑98 | |
|---|---|
Sound and noise | |
Sound power level, guaranteed (LWA) | 105 dB(A) |
Sound pressure level at operators ear (LpA) | 77 dB(A) |
TC 138T 960 51 01‑98 | |
|---|---|
Emission | |
Exhaust emissions (CO₂ EU V)2 | 817 g/kWh |
TC 138T 960 51 01‑98 | |
|---|---|
Dimensions | |
Base machine, height | 127 cm |
Base machine, length | 240 cm |
Base machine, width (chute up) | 102 cm |
Base machine, width (chute down) | 102 cm |
Tyre dimensions, front | 15X6-6 |
Tyre dimensions, rear | 18X9.5-8 |
Owner support
Owner support
Manuals, handbooks, spare parts, guides, and related information for TC 138T can be found in the product support.
Product support for TC 138TDisclaimer:
- 1Net power at preset rpm Energy: Net power rating as per SAE J1349, at specified RPM as specified by the engine manufacturer
- 2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
