Brushcutters

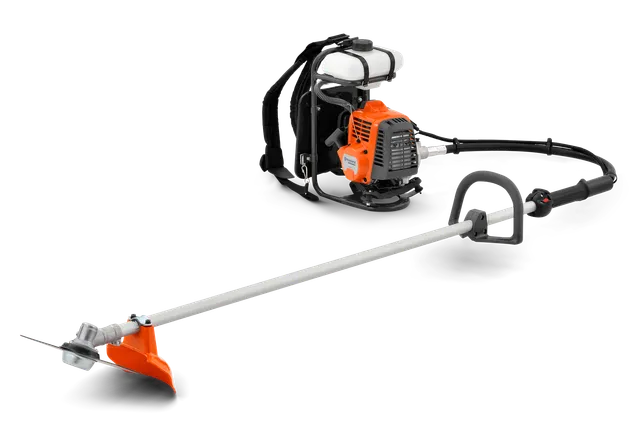

Parts, manuals and support for 541RB
All the support you need for 541RB. Manuals, spare parts, guides, how-to’s, and more.
Currently available
Go to 541RB product pageChoose article number
To show you the right support, choose an article number from this list.
Spare parts
Choose the part you wish to repair
THROTTLE CONTROLS
Article
Art. number
Support content
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications
| Engine | Asia excl. China Art no: 967 93 30‑02 |
|---|---|
Cylinder displacement | 41.5 cm³ |
Output shaft power | 1.47 kW |
Fuel tank volume | 1.3 l |
Fuel Consumption | 612 g/kWh |
Maximum power speed | 7,500 rpm |
Idling speed | 2,500 rpm |
Maximum rpm output shaft | 9,600 rpm |
Electrode gap | 0.6 mm |
Clutch engagement speed (±120) | 3,300 rpm |
Torque, max. | 2.26 Nm |
Torque, max. at rpm | 5,500 rpm |
Spark Plug | Champion RCJ6Y |
| Capacity | Asia excl. China Art no: 967 93 30‑02 |
|---|---|
Cutting width | 33 cm |
| Equipment | Asia excl. China Art no: 967 93 30‑02 |
|---|---|
Grass blade | Multi 330-2 |
Harness | Integrated |
Saw blade | Not included |
Trimmer head | Not included |
Handle type | Bullhorn |
| Dimensions | Asia excl. China Art no: 967 93 30‑02 |
|---|---|
Tube diameter | 26 mm |
Weight (excl. cutting equipment) | 9 kg |
Tube length | 1,500 mm |
| Lubricant | Asia excl. China Art no: 967 93 30‑02 |
|---|---|
Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 |
Lubricant type (bevel gear) | Mineral grease |
| Transmission | Asia excl. China Art no: 967 93 30‑02 |
|---|---|
Gear ratio | 1.25 |
Drive gear angle | 60 ° |
| Vibration | Asia excl. China Art no: 967 93 30‑02 |
|---|---|
Equivalent vibration level (ahv, eq) left handle | 2.6 m/s² |
Equivalent vibration level (ahv, eq) right handle | 2.9 m/s² |
| Sound and noise | Asia excl. China Art no: 967 93 30‑02 |
|---|---|
Sound pressure level at operators ear (LpA) | 87 dB(A) |
Sound power level, guaranteed (LWA) | 108 dB(A) |
| Control | Asia excl. China Art no: 967 93 30‑02 |
|---|---|
Connectivity | Not applicable |
