Brushcutters
Parts, manuals and support for 520iRX
All the support you need for 520iRX. Manuals, spare parts, guides, how-to’s, and more.
Currently available
Go to 520iRX product pageChoose article number
To show you the right support, choose an article number from this list.
Spare parts
Choose the part you wish to repair

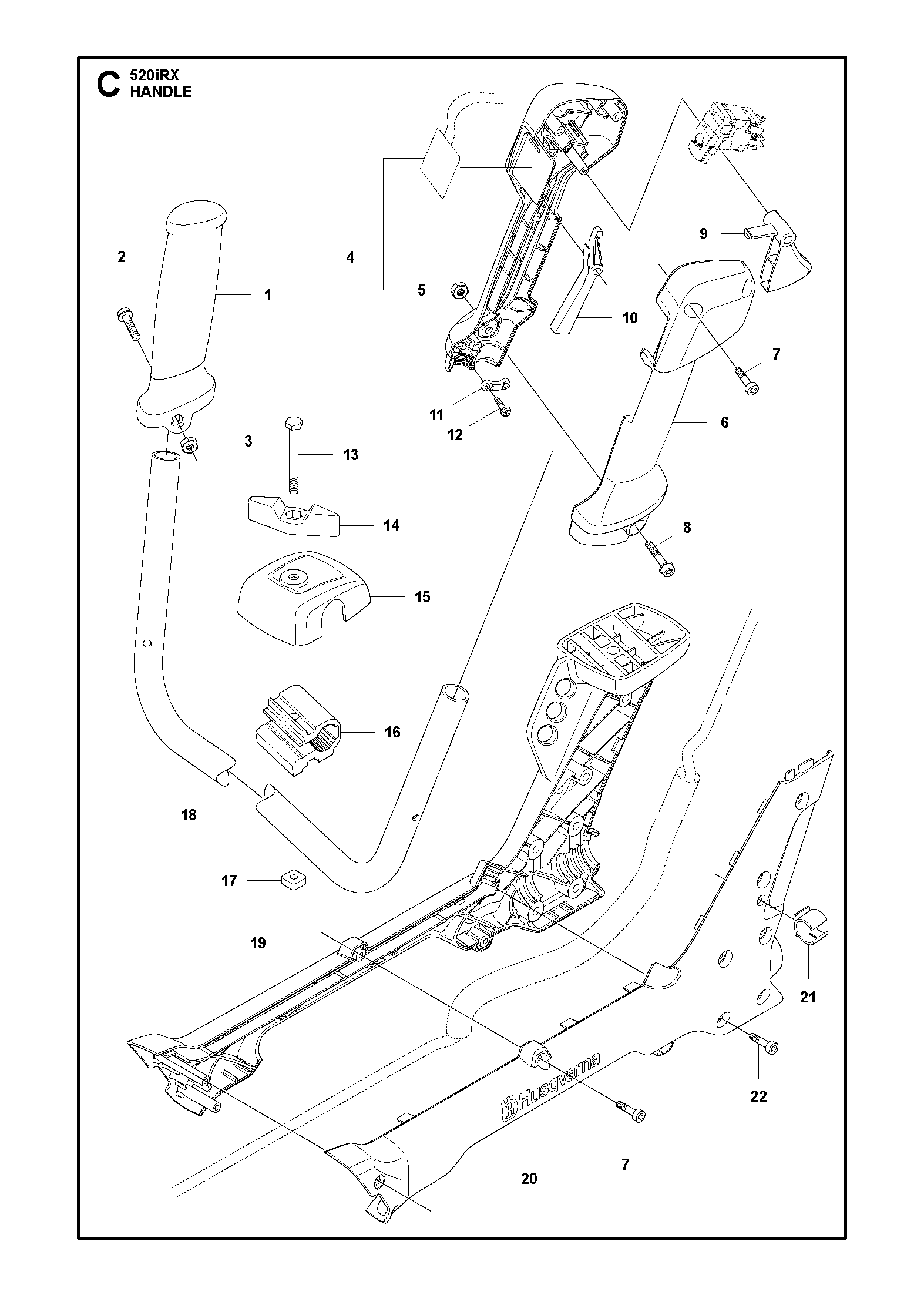

HANDLE
Article
Art. number
Support content
Manuals & Documents
(1)
Manuals & Documents
(1)
Showing the latest version of manual and documents for 520iRX. For earlier versions, see link below to search all manuals & documents..
Accessories
(1)
Accessories
(1)
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications
All excl US, CAN - incl. harness + blade, no battery, no charger 967 91 62‑02 | |
|---|---|
Engine | |
Motor type | BLDC (brushless) |
Maximum power speed | 5,500 rpm |
Maximum rpm output shaft | 5,500 rpm |
All excl US, CAN - incl. harness + blade, no battery, no charger 967 91 62‑02 | |
|---|---|
Capacity | |
Cutting width | 40 cm |
All excl US, CAN - incl. harness + blade, no battery, no charger 967 91 62‑02 | |
|---|---|
Equipment | |
Grass blade | Grass 255-3 |
Harness | Balance 35B |
Saw blade | Not included |
Trimmer head | T25B |
Handle type | Bullhorn |
All excl US, CAN - incl. harness + blade, no battery, no charger 967 91 62‑02 | |
|---|---|
Dimensions | |
Weight (excl. battery and cutting equipment) | 3.8 kg |
Tube diameter | 24 mm |
Tube length | 970 mm |
All excl US, CAN - incl. harness + blade, no battery, no charger 967 91 62‑02 | |
|---|---|
Transmission | |
Gear ratio | 1 |
Drive gear angle | 35 ° |
All excl US, CAN - incl. harness + blade, no battery, no charger 967 91 62‑02 | |
|---|---|
Battery | |
Battery Chemistry | Li-Ion |
Battery voltage | 36 V |
All excl US, CAN - incl. harness + blade, no battery, no charger 967 91 62‑02 | |
|---|---|
Vibration | |
Equivalent vibration level (ahv, eq) left handle | 1.2 m/s² |
Equivalent vibration level (ahv, eq) right handle | 0.7 m/s² |
All excl US, CAN - incl. harness + blade, no battery, no charger 967 91 62‑02 | |
|---|---|
Sound and noise | |
Sound pressure level at operators ear (LpA) | 76.1 dB(A) |
Sound power level, guaranteed (LWA) | 96 dB(A) |
All excl US, CAN - incl. harness + blade, no battery, no charger 967 91 62‑02 | |
|---|---|
Control | |
Connectivity | Corded |
