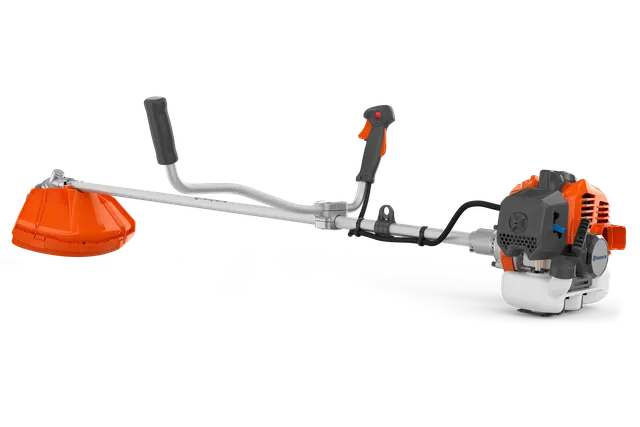

Side view of a Husqvarna brushcutter with ergonomic handle and protective guard.

Brushcutters

Parts, manuals and support for 131R

All the support you need for 131R. Manuals, spare parts, guides, how-to’s, and more.

Currently available
Go to 131R product page
Choose article number
To show you the right support, choose an article number from this list.

Spare parts

Choose the part you wish to repair

HANDLE
Choose your preferred view type for the spare parts
Skip drawning
HANDLEipl-areaipl-area
Article
Art. number






Support content

Warranty

All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.

Warranty policy
Warranty service

Check your warranty

Login or create an account on MyPages to check your warranty period.
MyPages

Is your product broken?

If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer

General questions

You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna

Specifications

Bullhorn brushcutter
967 84 31‑01
Engine

Cylinder displacement

32.6 cm³

Output shaft power

0.9 kW

Fuel tank volume

0.9 l

Fuel Consumption

550 g/kWh

Maximum power speed

7,000 rpm

Idling speed

3,000 rpm

Maximum rpm output shaft

7,100 rpm

Electrode gap

0.6 mm

Clutch engagement speed (±120)

4,880 rpm

Torque, max.

1.3 Nm

Torque, max. at rpm

6,000 rpm

Spark Plug

NGK BPM7A
Bullhorn brushcutter
967 84 31‑01
Capacity

Cutting width

43 cm
Bullhorn brushcutter
967 84 31‑01
Equipment

Grass blade

Multi 330-2

Harness

Single harness

Saw blade

Not included

Trimmer head

Not included

Handle type

Bullhorn
Bullhorn brushcutter
967 84 31‑01
Dimensions

Tube diameter

28 mm

Weight (excl. cutting equipment)

7 kg

Tube length

1,495 mm
Bullhorn brushcutter
967 84 31‑01
Lubricant

Lubricant type (Engine)

Husqvarna 2 stroke or equiv. at 50:1

Lubricant type (bevel gear)

Mineral grease
Bullhorn brushcutter
967 84 31‑01
Transmission

Gear ratio

0.74

Drive gear angle

30 °
Bullhorn brushcutter
967 84 31‑01
Vibration

Equivalent vibration level (ahv, eq) left handle

4.59 m/s²

Equivalent vibration level (ahv, eq) right handle

4.34 m/s²
Bullhorn brushcutter
967 84 31‑01
Sound and noise

Sound pressure level at operators ear (LpA)

92.4 dB(A)

Sound power level, guaranteed (LWA)

115 dB(A)
Bullhorn brushcutter
967 84 31‑01
Control

Connectivity

Not applicable
