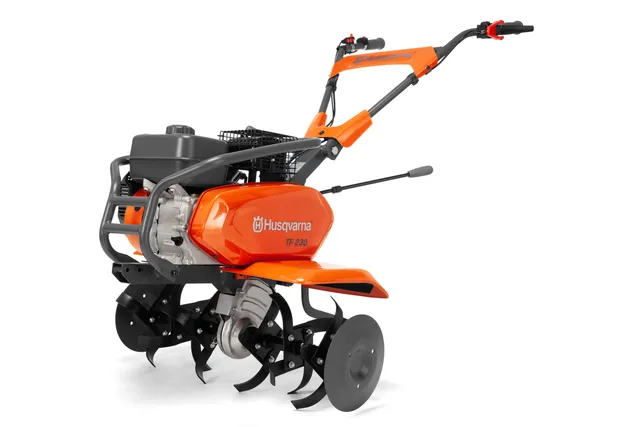

Tiller TF230

Parts, manuals and support for TF 230

All the support you need for TF 230. Manuals, spare parts, guides, how-to’s, and more.

Choose article number
To show you the right support, choose an article number from this list.

Support content

Manuals & Documents
(2)
Showing the latest version of manual and documents for TF 230. For earlier versions, see link below to search all manuals & documents..
Accessories
(5)
Warranty

All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.

Warranty policy
Warranty service

Check your warranty

Login or create an account on MyPages to check your warranty period.
MyPages

Is your product broken?

If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer

General questions

You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna

Specifications

TF 230 PETROL TILLER

Art no: 967 06 78‑01

Engine
TF 230 PETROL TILLER
Art no: 967 06 78‑01
Net power at preset rpm Energy3,45 kW
Air filter typeOil bath
Fuel tank volume3,6 l
Power/fuel typePetrol
Cylinder displacement196 cm³
Capacity
Working width75 cm
Working depth30 cm
Tine diameter320 mm
Number of tines6
Rotational speed (min/max) min53 rpm
Rotational speed (min/max) max97 rpm
Cultivator typeFront-tine
Equipment
Rubber wheelsIncluded
Transport wheel/sNot available
Foldable handlebarYes
Horizontally adjustable handlebarNo
Vertically adjustable handlebarYes
Emission
Exhaust emissions (CO₂ EU V)
610 g/kWh
Transmission
Transmission typeChain/Manual
Transmission steps reverse1
Transmission steps forward2
Dimensions
Weight (complete product w/o side packed articles)67 kg
Electric information
Engine nameHusqvarna Engine
