Trimmers

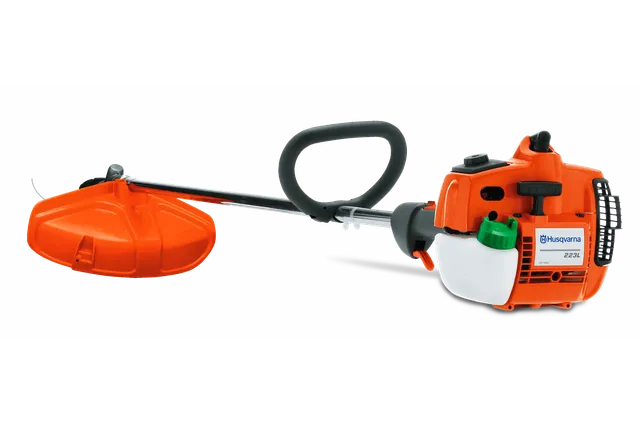

HUSQVARNA 223L

The Husqvarna 223L is a versatile trimmer with a straight shaft and bevel gear. The long reach and loop handle make it easy to turn and use the trimmer in different angles. Comes with reliable, easy to load semi automatic trimmer head.

  • Usage level
    Professional use
  • Cylinder displacement
    24.5 cm³
  • Power output
    0.75 kW
  • Weight (excl. cutting equipment)
    4.1 kg

FEATURES

Want to take a closer look? Learn more about the product in depth by exploring its design and features.

125L, 125C, 125LD, 325LDx, 325HE4x

Auto return stop switch

Stop switch automatically resets to the ON position for trouble-free starting.

Fuel pump

Fuel pump designed for easy starting.

Smart Start®

The engine and starter have been designed so the machine starts quickly with minimum effort. Resistance in the starter cord is reduced by up to 40%.

Smart Start, SmartStart

Wrought connecting rod

Forged connecting rod and three-piece crankshaft for extended product life.

Three piece crank shaft
125L, 125C, 125LD, 325LDx, 325HE4x

Auto return stop switch

Stop switch automatically resets to the ON position for trouble-free starting.

Fuel pump

Fuel pump designed for easy starting.

Smart Start, SmartStart

Smart Start®

The engine and starter have been designed so the machine starts quickly with minimum effort. Resistance in the starter cord is reduced by up to 40%.

Three piece crank shaft

Wrought connecting rod

Forged connecting rod and three-piece crankshaft for extended product life.

Specifications

Do you need further details to make the right decision? Learn more in the specifications section below. Locate your dealer

Dimensions

Weight (excl. cutting equipment)
4.1 kg
Tube length
1483 mm
Tube diameter
24 mm

Emission

Exhaust emissions (CO average)
333 g/kWh

Engine

Cylinder displacement
24.5 cm³
Power output
0.75 kW
Maximum power speed
9000 rpm
Fuel tank volume
0.5 l
Fuel consumption
680 g/kWh
Fuel consumption
0.51 kg/h
Idling speed
2700 rpm
Spark plug
Champion RCJ7Y, NGK BPMR7A
Electrode gap
0.5 mm
Torque, max. at rpm
6000 rpm
Torque, max.
1.2 Nm
Clutch engagement speed (±120)
3800 rpm
Maximum rpm output shaft
8014 rpm
Basic model
H323
Basic model
H323
Engine Family
9HVXS.0254EQ
Engine Family
9HVXS.0254EQ

Equipment

OEM Trimmer head
T35 M10

Lubricant

Lubricant type
Husqvarna or equiv. at 50:1

Sound and Noise

Sound pressure level at operators ear
98 dB(A)

Transmission

Gear ratio
1.46
Drive gear angle
30 °

Vibration

Equivalent vibration level (ahv, eq) front handle
7.1 m/s²
Equivalent vibration level (ahv, eq) rear handle
9.7 m/s²
